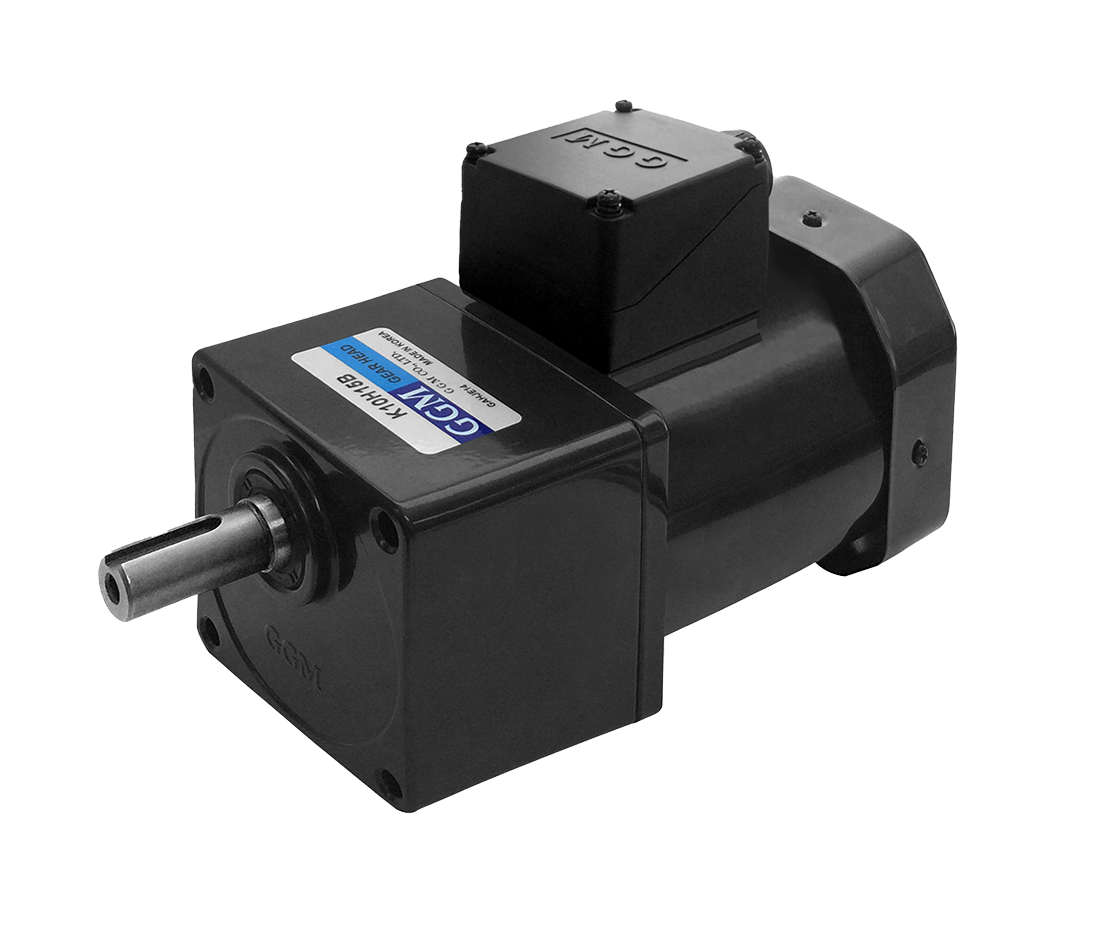

200W / 104mm
AC Geared Motor
GGM Compact AC Geared range is offered in a 104mm frame size with an output power of 200W and output torque up to 40Nm, using a wide range of gearbox ratios. Motors are either 1ph 230VAC or 3ph 230VAC, with enclosure ratings up to IP54. Motors can be supplied with Terminal Boxes or Flying Leads. The gearbox are In-line helical spur gearboxes with square body.
- AC Induction Motors
- In-Line Helical Spur Gearboxes
- Square Gearbox Design
- Wide Selection Of Ratios
- 1ph 230VAC or 3ph 230VAC
* This range is supplied unassembled as standard, but can be supplied assembled on request for a small fee
