Compact AC

compact AC induction geared motors, in-line and right angle, 6W-200W, 1ph & 3ph, fixed & variable speed, ex-stock, low noise

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

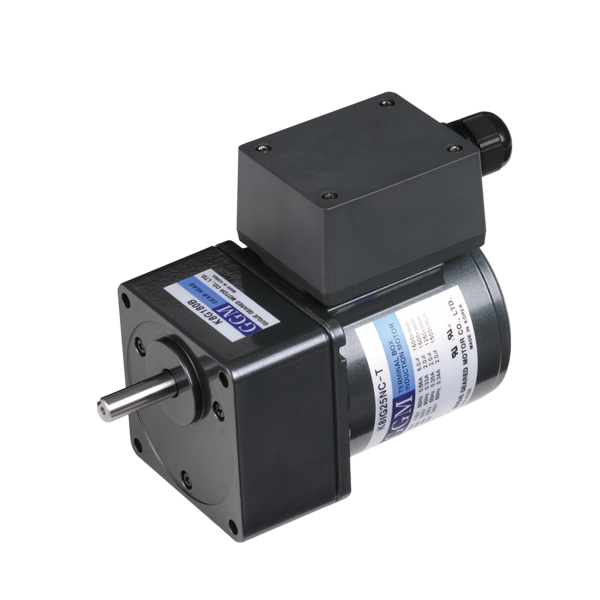

25W - 1ph/3ph

AC Geared Motor

GGM Compact AC Geared Motors held in stock, delivered within 24 hours. The range includes AC Induction motor, powers 25W, with a wide range of gearbox ratios. Motors are either Fixed Speed or Variable Speed, with enclosure ratings up to IP65. Motors can be supplied with Terminal Boxes or Flying Leads. In-line helical spur gearboxes are available from stock.

  • AC Induction Motors
  • In-Line Helical Spur Gearboxes
  • Wide Selection Of Ratios
  • Fixed Speed, Variable Speed, Braked

* This range is supplied unassembled as standard, but can be supplied assembled on request for a small fee

Technical
Downloads
Linked Products
Motor Rated Power25W
Frame Size80mm2
Motor Rated Speed1250RPM
Gearbox Rated Output Torque8Nm
Gearbox Ratio3:1 - 250:1
Supply1ph 230VAC
1ph 115VAC
3ph 230VAC
3ph 400VAC
Rated Frequency50 - 60Hz
Enclosure RatingIP20 - IP65
Electrical ConnectionTerminal Box or Flying Lead
Thermal ProtectionThermal Switch
OptionsVariable Speed, EM Brakes
DatasheetGGM Datasheet - 25W Standard InductionPDF 1.9MB
.
GGM Datasheet - 25W Quick ReversiblePDF 776KB
.
CataloguesGapp Compact AC Geared Motors - Stock RangePDF 2.7MB
.
GGM Compact Geared Motors Main CataloguePDF 105MB
.
CAD DrawingsGGM 25W Motors and Gearboxes - STP FormatZIP 298KB
.
CertificatesCE LVD CertificatePDF 1.6MB
.
UL CertificatePDF 11.5MB
.
RoHs CertificatePDF 117KB
.
