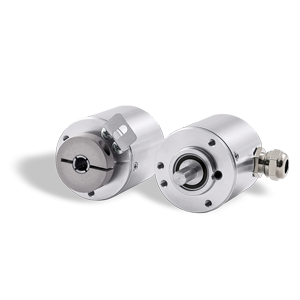

AM36/AMC36

Compact High Performance Absolute Encoder

High performance, compact, multi-turn, absolute encoder with 36mm body diameter and with solid or blind hollow shaft. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses optical sensing, offering a maximum resolution of up to 19 Bit.

  • 36mm Body Diameter
  • Magnetic Sensing
  • Max Resolution 19 Bit
  • Multi-Turn
  • 6mm Max Diameter Shaft or Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter36mm
Maximum Absolute Turns4096
Maximum Resolution19 Bit
Output CircuitBinary, SSI
Gray, SSI
BiSS-C
Supply Voltage5VDC
10 - 30VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter6mm
Electrical ConnectionCable
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP67
OptionsCable Length
Cable Plus Connector
CatalogueAM36/AMC36 DatasheetPDF 254KB
Lika Product Overview BrochurePDF 6.0MB
Lika Product News FlierPDF 957KB
ManualAM36/AMC36 ManualPDF 1.2MB
AM36/AMC36 Installation GuidePDF 409KB
CertificatesEU Declaration Of ConformityPDF 789KB
UL Certificate Of CompliancePDF 415KB
RoHs/WEEE Declaration Of ConformityPDF 425KB
Reach Declaration Of ConformityPDF 6.8MB
ISO 9001 Quality CertificatePDF 460KB
