MID-Level PLCS

Compact design, wide range of modules, motion control, high expandability, field bus options, fast execution speeds

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

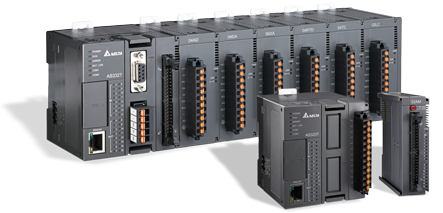

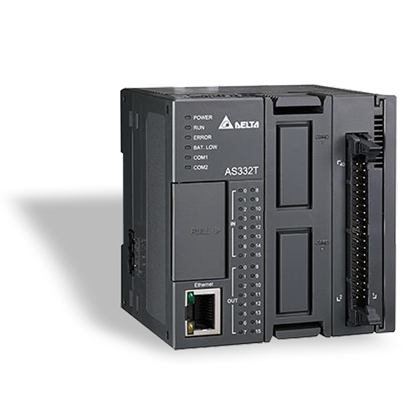

AS200/300

Compact Modular Mid-Range PLC

Delta's AS mid-range PLC Series is a high performance multi-purpose controller suitable for a wide variety of applications such as labelling, food packaging and textile machines. Offering enhanced execution speeds up to 40k/step/ms, and supporting upto 32 extension modules, the AS range is powerful, but in a compact form factor. Motion control of up to 8 axes is possible via CANopen or 6 axes using pulse control (200kHz).

  • Modular Design
  • Fast Execution Speeds
  • Motion Control Functionality
  • Supports Multiple Fieldbuses

Technical
Downloads
Linked Products
Power Supply24VDC
I/O PointsUp To 1024
Program Capacity64K Steps
128K Steps
Output TypeNPN (Transistor)
PNP (Transistor)
Relay
Differential
CommunicationUSB
EtherNet
RS485
CANopen
Modbus
Modbus TCP
EtherNet/IP
PositioningUp To 6 Axes
High Speed Counters6 Channels 200kHz
2 Channels 4Mhz / 4 Channels 200kHz
CatalogueDelta AS200/300 CataloguePDF 4.8MB
Delta Automation Products Overview BrochurePDF 14.4MB
Delta Product Selection ToolZIP 2.4MB
ManualDelta AS200/300 Programming ManualPDF 12.5MB
Delta PLC Cable GuidePDF 10.9MB
Delta Operating Manuals & Installation GuidesVarioushttp://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=AS+Series%2c&title=AS+Series%2c&dataType=3;5;&check=1&hl=en-US
SoftwareDelta PLC Software & Communication ToolsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=&title=&dataType=8;&check=1&hl=en-US
DimensionsDelta PLC 2D and 3D CAD DrawingsVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=&title=&dataType=9;&check=1&hl=en-US
CertificationsDelta PLC CE, UL and CUL CertificatesVarioushttps://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060301&typeID=1&downloadID=&title=&dataType=10;&check=1&hl=en-US

Technical Information

Product technical details and product downloads

Click Here
