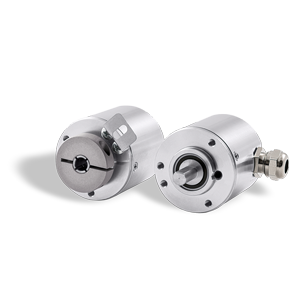

AS36/ASC36

Compact High Performance Absolute Encoder

High performance, compact, single-turn, absolute encoder with 36mm body diameter and with solid or blind hollow shaft. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses optical sensing, offering a maximum resolution of up to 20 Bit.

  • 36mm Body Diameter
  • Magnetic Sensing
  • Max Resolution 20 Bit
  • Single-Turn
  • 6mm Max Diameter Shaft or Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter36mm
Maximum Absolute TurnsSingle
Maximum Resolution20 Bit
Output CircuitBinary, SSI
Gray, SSI
BiSS-C
Supply Voltage5VDC
10 - 30VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter6mm
Electrical ConnectionCable
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP67
OptionsCable Length
Cable Plus Connector
CatalogueAS36/ASC36 DatasheetPDF 189KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualAS36/ASC36 ManualPDF 930KB
.
AS36/ASC36 Installation GuidePDF 1.8MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
