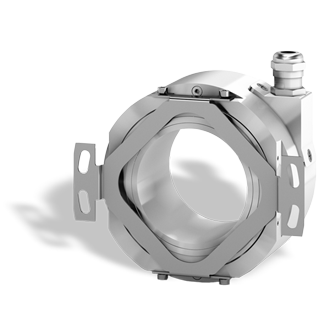

ASC85

Precision Motor Feedback & Radar Encoder

Designed for use on high precision motor feedback application or radar systems, the C82 absolute encoder offers a flat design constructed from stainless steel. The body diameter is 87mm which allows for a through hollow bore diameter 50mm. Offering a resolution of 25bit, with single turn absolute measurement, using optical sensing.

  • 87mm Body Diameter
  • Absolute, Single Turn
  • Optical Sensing
  • Resolution 25bit
  • 50mm Max Diameter Through Hollow Bore

Technical
Downloads
Linked Products

>

Sensing MethodOptical
Body Diameter87mm
Resolution25bit
Output CircuitSSI
BiSS-C
1Vpp
Supply Voltage5VDC
10 - 30VDC
Shaft DesignThrough Hollow Bore
Max Shaft Diameter50mm
Electrical ConnectionCable
Cable with M12 Connector
Cable with M23 Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed2000rpm
Maximum Enclosure RatingIP65
OptionsCable Length
Cable Length with Connector
CatalogueASC85 DatasheetPDF 126KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualASC85 ManualPDF 2.2MB
.
ASC85 Installation GuidePDF 1.2MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
