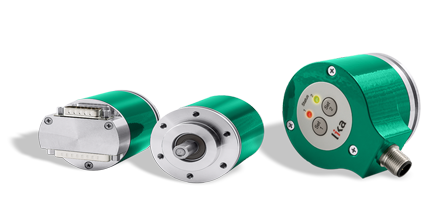

ASR58/AMR58

Programmable Single or Multi-Turn Absolute Encoder With Integrated CAM Switch

Fully programmable single or multi-turn absolute encoder with integrated CAM switch. Constructed from a robust corrosive resistant 6082 aluminium alloy 58mm diameter body, with a stainless steel shaft. Uses optical sensing offering a maximum resolution of up to 12 Bit, with up to 256 turns. Programmable CAM switch with up to 16 digital outputs, 16 recipes, and optional programmable analogue output.

  • Programmable CAM Switch
  • Single or Multi-Turn
  • Max Resolution 12 Bit / 256 Bit Turns
  • Optional Analogue Output
  • Optical Sensing, 58mm Body Diameter
  • Max Solid Shaft ∅12mm, or Blind Hollow Bore ∅15mm

Technical
Downloads
Linked Products
Sensing MethodOptical
Housing Diameter58mm
Maximum Resolution12 Bit Resolution / 256 Turns
Output Circuit8 - 16 Push-Pull Outputs
SSI
0 to 10V
0 to 5V
-5 to 5V
CAM Switch + SSI
Supply Voltage10 - 30VDC
Shaft DesignSolid
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionCable
MIL Connector
DSub Connector
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6,000RPM
Maximum Enclosure RatingIP65
OptionsCable Length
Connector Type
Shaft Diameter
Analogue Output
