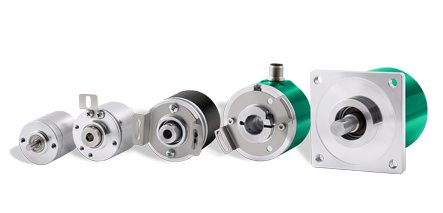

standard ABSOLUTE encoders

compact size, optical or magnetic sensing, high resolution, solid shaft or hollow bore, wide temperature range, high ip rating, wide range

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

AST6/AMT6

Square Flange Absolute Encoder with Imperial Dimensions

Robust industrial encoder with square flange and imperial dimensions, available in either single turn or multi-turn models. Produced with a Zamac alloy 65mm diameter body, corrosive resistant 6082 aluminium alloy flange, and stainless steel solid shaft shaft. Uses optical sensing, offering a maximum resolution of up to 18 Bit.

  • Square Flange
  • Imperial Dimensions
  • Optical Sensing
  • Max Resolution 18 Bit
  • Single or Multi-Turn
  • Solid Output Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter65mm
Maximum Absolute TurnsSingle or 16,384 Turns
Maximum Resolution18 Bit
Output CircuitSSI (RS232)
Bit Parallel Push-Pull
NPN
Supply Voltage7.5 - 34VDC
Shaft DesignSolid Output Shaft
Max Shaft Diameter12mm
Electrical ConnectionCable
M23 Connector
MIL Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP66
OptionsCable Length
Connector Type
Connection Position
Shaft Diameter
IP Rating
CatalogueHSCT/HMCT DatasheetPDF 128KB
Lika Product Overview BrochurePDF 6.0MB
Lika Product News FlierPDF 957KB
ManualHSCT/HMCT Manual - SSIPDF 1.1MB
HSCT/HMCT Manual - BIT ParallelZIP 2.2MB
CertificatesEU Declaration Of ConformityPDF 789KB
UL Certificate Of CompliancePDF 415KB
RoHs/WEEE Declaration Of ConformityPDF 425KB
Reach Declaration Of ConformityPDF 6.8MB
ISO 9001 Quality CertificatePDF 460KB
