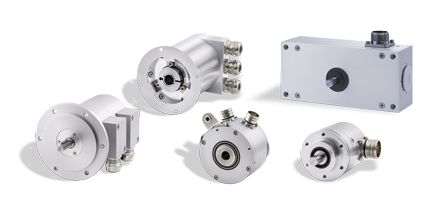

heavy duty encoders

robust housing, high ip rating, suitable for harsh environments, corrosive resistant, incremental or absolute, redundancy, integrated fieldbus interface

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

C100

Heavy Duty Incremental Hollow Shaft Encoder

Robust Heavy Duty Incremental encoder, with 100mm diameter body, for use in demanding applications. Constructed from an anodized corrosive resistant 6082 aluminium alloy body, and stainless steel blind hollow or blind tapered hollow bore. Suitable for withstanding high shaft loads. Power output circuits for long distance cables.

  • 100mm Body Diameter
  • Annodized Corrosive Resistant Body
  • Optical Sensing
  • Max Resolution 2500ppr
  • 16mm Blind Hollow Bore or 17mm (1:10) Tapered Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter100mm
Maximum Resolution2500ppr
Output CircuitPower Push-Pull
Power Line Driver
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignBlind Hollow Bore
Blind Tapered Hollow Bore
Shaft Diameter16mm Blind Hollow Bore
17mm 1:10 Tapered Blind Hollow Bore
Electrical ConnectionCable
M23 Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP54
OptionsShaft
Cable Length
CatalogueC100 DatasheetPDF 450KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualC100 Installation ManualPDF 2.4MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
