c2-10

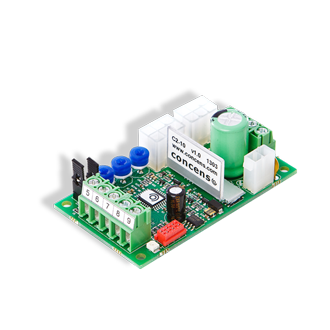

Current Limiting Controller

The C2-10 controller is designed for controlling start/stop and fwd/rev of linear actuators whilst offering current limiting protection to the actuator and the load. On board potentiometers allow the adjust of the acceleration/deceleration ramps and the current limiting setting. A kick-start feature delivers up to 55A for 250ms to overcome initial starting friction and the effects of the load inertia. Other feature include a fault input/output, dynamic braking and status LED.

  • Provide overload protection of Actuator and Load
  • Kick-start Feature
  • Status LED
  • Simple Set-Up

Technical
Downloads
Linked Products
Supply Voltage10 - 35VDC
Rated Current10A Continuous
16A (10% Duty/2min)
Current Limit Range0.5 - 16A
Acceleration Ramp0.1 - 2.5s
Deceleration Ramp0.1 - 2.5s
Digital InputForward
Reverse
Fault-In
Digital OutputFault-Out
Status LEDYes
Operating Temperature-20ºC to +70ºC
OptionsDin-Rail Mount
Metal Enclosure (IP00)
Plastic Enclosure (IP55)
CatalogueConcens C2-10 DatasheetPDF 1.4MB
.
Concens Corporate ProfilePDF 2.6MB
.
General InformationRMA FormPDF 349KB
.
SoftwareConfigTool Lite Set-Up SoftwareJAR 2.1MBhttp://www.concens.com/sites/default/files/downloads/c2_config_tool_light_v1.23.jar
Training TutorialsC2-10 Basic Function and Settingshttps://www.youtube.com/watch?v=D5y7o05LlMs&list=PLxLd-Jxr03ZqievDcHQ3JgPwT54lknbf-
C2-10 Getting Startedhttps://www.youtube.com/watch?v=xa8vXcRecZc&list=PLxLd-Jxr03ZqievDcHQ3JgPwT54lknbf-&index=2
C2-10 Connected to Actuator with Hall Sensorshttps://www.youtube.com/watch?v=whNKt4X8l50&list=PLxLd-Jxr03ZqievDcHQ3JgPwT54lknbf-&index=3
C2-10 Connected to a PLChttps://www.youtube.com/watch?v=FYBNZAzjfPw&index=4&list=PLxLd-Jxr03ZqievDcHQ3JgPwT54lknbf-
C2-10 Connected to an Emergency Stop Switchhttps://www.youtube.com/watch?v=b32aSI-K53w&list=PLxLd-Jxr03ZqievDcHQ3JgPwT54lknbf-&index=5
