Linear controls

current limiting, positioning, synchronising, AC, DC or battery powered

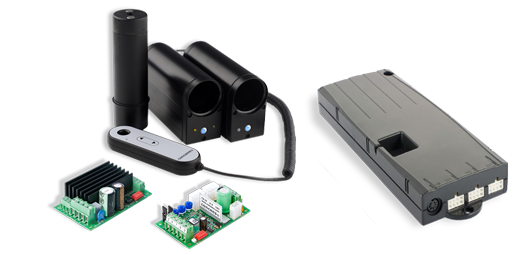

During the early 1990s a Danish company required a compact inline actuator, however as a suitable product was not available on the market, a new design was developed. This new design was nominated for several design prizes, and based on that Concens was formed. From the very start the goal of Concens was to design and manufacture powerful & compact inline actutors. Concens is driven by strong values of commitment, versatility and flexibility. Their aim to be at the forefront of developments within the field of linear motion, in an ever changing market, by offering a combination of design, size and functionality to meet customers’ requirements. Concens has focused on offering compact, well-designed inline electric actuators for use in applications where size, appearance and strength are crucial. Successful applications sectors include medical, rehab, industrial automation, marine and building automation. Concens solutions include actuators, controllers, battery powered solutions, handsets, together with a range of programming tools.

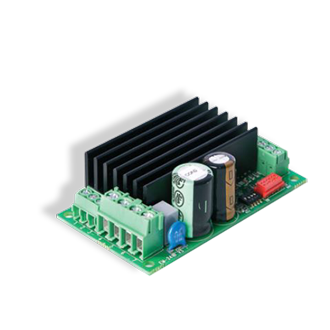

c2-20

Positioning Controller

The C2-20 controller is designed for positioning applications for single actuators. Movement of the actuator is determine by an analogue reference voltage (0-5.4V or 0-10.8V). As the controller requires position feedback, the actuator is fitted with hall sensors. The controller must perform a "learning" cycle when first connected to the actuator to calculate the working stroke. In addition to controlling position, the C2-20 also provides current limiting protection, soft start/stop, range scaling, dead band, speed limiting and trip output.

  • Positioning via Analogue Reference Voltage
  • Current Limiting Protection
  • User Parameterisation
  • Status LED

Technical
Downloads
Linked Products
Supply Voltage12 - 24VDC
Rated Current15A Continuous
20A (10% Duty/2mins)
Current Limit Range0.1 - 20A
Acceleration Ramp0.1 - 5s
Deceleration Ramp0% - 20% Of Stroke
Digital InputLearning
Stop-Reset
Fault-In
Digital OutputPosition OK
Fault-Out
Status LEDYes
Operating Temperature-20ºC to +70ºC
OptionsDin-Rail Mount
USB Programming Lead
Handheld Programming Keypad & Display
Mini-Fit Patch Lead
Metal Enclosure (IP00)
Plastic Enclosure (IP55)
CatalogueConcens C2-20 DatasheetPDF 1.3MB
.
Concens Corporate ProfilePDF 2.6MB
.
General InformationRMA FormPDF 349KB
.
SoftwareC2-20 ConfigTool Set-Up SoftwareJAR 2.1MBhttp://www.concens.com/sites/default/files/downloads/concens-c2-20-install_v1.3.jar
Training TutorialsC2-20 Initial Set-Up & Potentiomenter Controlhttps://www.youtube.com/watch?v=xrLOmyaDYe8&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=1
C2-20 Learning Cyclehttps://www.youtube.com/watch?v=FTzAFnBFxg8&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=2
C2-20 Config Tool Installationhttps://www.youtube.com/watch?v=SVZeejdZlro&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=3
C2-20 Reading & Saving Parametershttps://www.youtube.com/watch?v=iov1B3OJrJg&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=4
C2-20 Range Scalinghttps://www.youtube.com/watch?v=D9A-hwUu_8A&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=5
C2-20 Position OK LEDhttps://www.youtube.com/watch?v=Qc4L0ZJT_uI&index=6&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru
C2-20 Connecting An Emergency Stophttps://www.youtube.com/watch?v=CtEVrdelOhQ&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=7
C2-20 Hall Pulse Calculationhttps://www.youtube.com/watch?v=7A3nxYY49JM&list=PLxLd-Jxr03ZpZM60lDucMccL0WC2w57Ru&index=8
Concens Actuator Wire Colour Codinghttps://www.youtube.com/watch?v=QEdM5FtsfBs
