fieldbus connectors

Profinet, profibus, canbus, metalised, robust design, wide range, integrated termination resistor, simple assembly

Helmholz produces a comprehensive range of automation components ranging from decentralised I/O systems, switches and repeaters, gateways and firewalls, to integrated remote maintenance solutions. Founded in 1988, the business has been at the forefront of developing user friendly and innovative automation components. Initially established as an engineering company for software and plant commissioning, two years later the first Siemens S5 products were launched. Today employing 85 people the company serves its worldwide customers through a network of sales offices and distributors. Assembly and inspection takes place at the company headquarters in Großenseebach, Germany. High standards of quality and performance, in accordance to ISO 9001:2015, have provided the foundation for Helmhoz success over the past 30 years.

CANbus Connectors

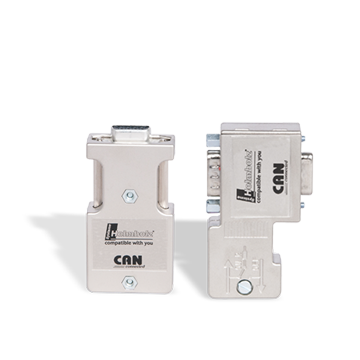

Metalised CANbus Network Connectors

The Helmholz CANbus connectors come in either 90o or 0o designs, with or without PG connection, and offer simple and fast assembly by means of 6 screw terminals. A termination resistor is integrated for easy installation of the network. Transmission speeds are up to 1Mbps

  • Metalised Housing
  • 90o or 0o Designs
  • Integrated Terminating Resistor
  • No Loose Parts

Technical
Downloads
Linked Products
Transmission Rate1Mbps
Connector Type9 Pin SUB-D
Connector Orientation90o
35o
0o
Termination ResistorIntegrated
Cable Type0.5mm2
Cable Max Outer Diameter8mm
Protection RatingIP20
Operating Temperature-25oC to +80oC
CatalogueHelmholz CANbus Connectors DatasheetVarioushttps://www.helmholz.de/en/download/
Helmholz Product Summary BrochurePDF 3.2MB
.
ManualsCANbus Connector Installation GuideVarioushttps://www.helmholz.de/en/download/
DrawingsCAD DrawingsVarioushttps://www.helmholz.de/en/download/
