Compact BLDC

brushless DC, excellent speed holding, wide torque range, in-line and right angle, high efficiency, Controllers 230VAC or 24VDC

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

Compact BLDC

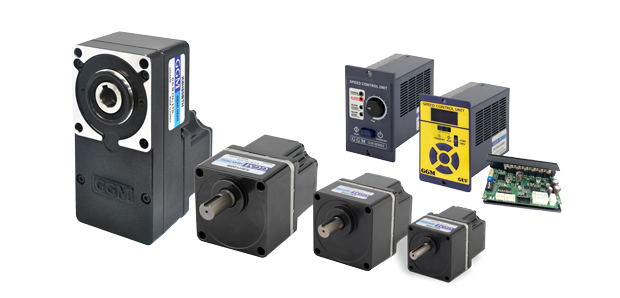

BLDC Geared Motors and Controllers

GGM’s compact BLDC DC geared motors offer an extremely compact design, wide speed range, and excellent speed holding. The range includes powers from 25W up to 200W, with a wide range of gearbox ratios. The controllers are offered in either 230VAC or 24VDC variants. The motors are supplied with flying leads, and can be used in conjunction with in-line helical spur gearboxes or right angle gearboxes, with either hollow or solid shaft. The geared motors are rated to IP65 for harsh environments.

  • Wide Speed Range
  • Compact Design
  • In-Line Helical Spur Gearboxes or Right Angle
  • High Efficiency

* This range is supplied unassembled as standard, but can be supplied assembled on request for a small fee

Technical
Downloads
Linked Products
Motor Rated Power20W - 200W
Motor Rated Speed2000RPM, 2500RPM
Gearbox Rated Output TorqueUp To 70Nm
Gearbox Ratio5:1 - 200:1
Supply Voltage24VDC, 230VAC
Enclosure RatingIP65
Motor Frame Size60mm2 - 90mm2
Electrical ConnectionFlying Lead
OptionsExtension Cables
CatalogueBLDC Geared Motor CataloguePDF 6.7MB
Operation InstructionsGUB 230VAC Controller (20-90W)PDF 772KB
GUB 230VAC Controller (150-200W)PDF 1.0MB
GUL 24VDC Controller (30-50W)PDF 850KB
GUL 24VDC Controller (100W)PDF 808KB
DimensionsDC Geared Motor CAD Drawingshttp://www.ggm.co.kr/html/en/download02.php?s_c1=43#product_table
CertificateCE Certificate - GUB ControllersPDF 332KB
CE Certifiate - BLDC MotorsPDF 608KB
