Compact DC

compact DC Permanent magnetc geared motors, in-line and right angle, 6W-200W, wide range of voltages, low noise, Ex-stock

Compact DC

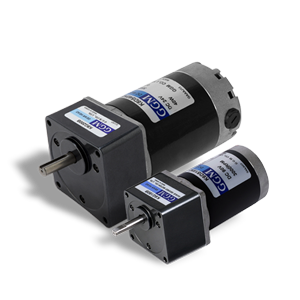

DC Permanent Magnet Geared Motor

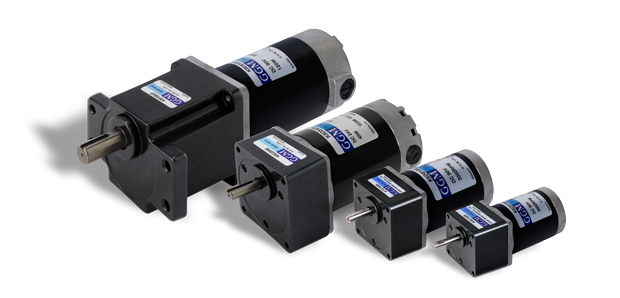

GGM Compact DC Geared Motors held in stock, delivered within 24 hours. The range includes powers 6W up to 200W, with a wide range of gearbox ratios. Motors come in a variety of voltages, and supplied with Flying Leads. In-line helical spur gearboxes are available from stock, however right angle gearboxes are also available with either hollow or solid shaft on a short leadtime.

  • DC Induction Motors
  • In-Line Helical Spur Gearboxes or Right Angle
  • Wide Selection Of Ratios
  • Variety Of Voltages

* This range is supplied unassembled as standard, but can be supplied assembled on request for a small fee

Technical
Downloads
Linked Products
Motor Rated Power6W - 200W
Motor Rated Speed3000RPM
Gearbox Rated Output Torque3Nm - 30Nm
Gearbox Ratio3:1 - 200:1
Motor Voltage12V, 24V, 90V, 180V, 220V
Enclosure RatingIP20
Motor Frame Size60mm2 - 90mm2
Electrical ConnectionFlying Lead
Thermal ProtectionNo
OptionsEM Brakes
CatalogueGGM DC Geared Motor CataloguePDF 3.9MB
GGM Compact Geared Motors Main CataloguePDF 105MB
DimensionsDC Geared Motor CAD Drawingshttp://www.ggm.co.kr/html/en/download02.php?s_c1=42#product_table
CertificatesCertificate Of ConformityPDF 2.5MB
