Linear actuators

compact design, comprehensive range, high IP rating, long life, different materials & surface treatments

During the early 1990s a Danish company required a compact inline actuator, however as a suitable product was not available on the market, a new design was developed. This new design was nominated for several design prizes, and based on that Concens was formed. From the very start the goal of Concens was to design and manufacture powerful & compact inline actutors. Concens is driven by strong values of commitment, versatility and flexibility. Their aim to be at the forefront of developments within the field of linear motion, in an ever changing market, by offering a combination of design, size and functionality to meet customers’ requirements. Concens has focused on offering compact, well-designed inline electric actuators for use in applications where size, appearance and strength are crucial. Successful applications sectors include medical, rehab, industrial automation, marine and building automation. Concens solutions include actuators, controllers, battery powered solutions, handsets, together with a range of programming tools.

con60

Compact In-line Linear Actuator

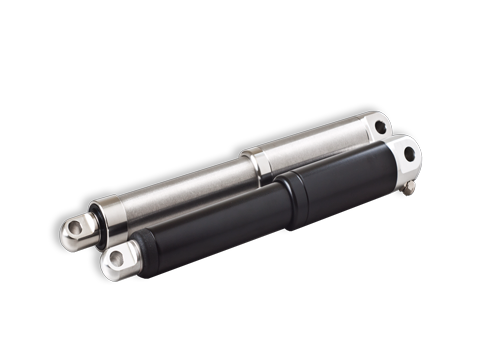

The con60 inline linear actuator from Concens offers a sleek compact design, ideal where space if of a premium, powerful actuator offering up to 10,000N, available in powdered coated carbon steeel or ASIS316 stainless steel, duty rating of 10%, high IP rating, options include clevis ends and hall effect sensor feedback.

  • Compact 60mm Diameter Body
  • 24VDC motor
  • High IP Rating
  • Stainless Steel AISI316 Optional

Technical
Downloads
Linked Products
Rated Force1,900N - 10,000N
Rated Speed26mm/s - 5mm/s
Gear Ratio19, 43, 66, 81, 100
Duty Cycle10% (2mins/18mins)
IP RatingIP66
Harsh Environment
Standard Maximum Stroke750mm (5000N)
(longer lengths available on special request)
Motor Supply24VDC/10A
MaterialPowder Coated Carbon Steel
AISI316 Stainless Steel
Bracket MaterialPolyamide
Aluminium
AISI316 Stainless Steel
Operating Temperature-5ºC to +70ºC
-40˚C to +70˚C (Eskimo version)
CatalogueCon60 DatasheetPDF 1.3MB
.
Con60 Mounting Brackets FlierPDF 168KB
.
Concens Corporate ProfilePDF 2.6MB
.
General InformationMounting RecommendationsPDF 8146KB
.
Actuator Enquiry FromPDF 619KB
.
Actuator Configuration GuidePDF 192KB
.
Actuator Vocabulary GuidePDF 125KB
.
Hall Sensor DatasheetPDF 967KB
.
Actuator Cable SpecificationPDF 671KB
.
RMA FormPDF 349KB
.
DimensionsCadenas CAD Configuratorhttp://concens.partcommunity.com/3d-cad-models/actuators-concens?info=concens%2Factuators
Con60 Mounting Brackets DrawingPDF 317KB
.
CertificationsIEC/EN/UL60601-1 CertificatePDF 207KB
.
Declaration Of ConformityPDF 601KB
.
