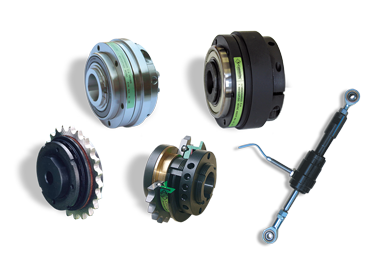

Torque Limiters

overload safety devices, wide range, standard and customised designs, corrosion resistant

Founded in 1967 by Dante Cavalli, under the name OMC, the company originally manufactured mechanical transmission components. In 2010 the company name was changed to ComInTec, to better reflect how the product range has developed over the years. The range now includes power transmission components, torque limiters, safety couplings, backlash free torque limiters, elastic couplings, disc couplings, backlash free couplings, variable speed pulleys, expanding pulleys, shaft collars and clamp collars. These components provide transmission connections, avoid accidental overloads, reduce machine stoppage times, increase productivity, and reduce maintenance and repair costs. Sold globally, the Comintec products are used in a wide variety of application and market sectors, and renowned for quality and reliability.

DF

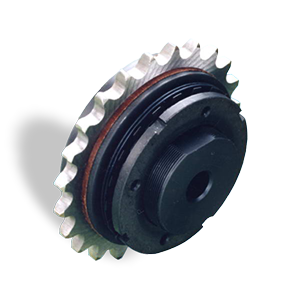

Friction Torque Limiter

Slipping safety coupling where the transmission component is fitted between two friction rings and slips when the calibrated torque is reached. A simple and low cost protection device, ideal for general purpose torque limiting applications.

  • Simple Set-Up
  • Low Cost
  • Compact Design
  • Corrosion Resistant Versions
  • Stainless Steel Versions

Technical
Downloads
Linked Products
Torque Range1 - 23,000Nm
BoreUp To Ø140mm
Body DiameterØ25 - Ø400mm
SensitivityLow
SpeedUp To 10,000rpm
Transmission Element Width1 - 35mm (Standard Hub)
21 - 119mm (Long Hub)
Overload Detection SignalYes (SI Version)
Drive OrientationParallel
In-Line (TAC Version)
Corrosion ResistantOn-Request
Bi-Directional Overload DetectionYes
Maintenance FreeNo
CatalogueDF Friction Torque Limiter BrochurePDF 912KB
Torque Limiter CataloguePDF 7.4MB
Stainless Steel FlierPDF 1.7MB
Technical ManualDF Installation InstructionsPDF 1.3MB
