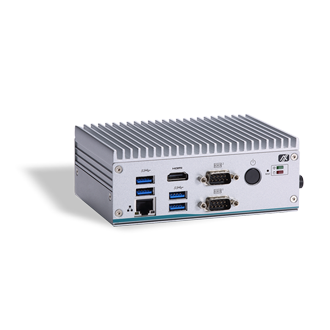

ebOx560-512-fl

Ultra Compact Box IPC

The eBOX560-512-FL is an ultra compact, palm sized industrial PC ideally suited to factory automation, retail equipment and digital signage. It is enclosed in an IP40 rated heavy duty aluminium extrusion and steel housing and offers a wide operating temperature range and up to 3G shock vibration. The eBOX560 offers two HDMI ports with up to 4K resolution, for dual display applications.

  • Palm-Sized
  • IP40 / 3G Shock Vibration
  • i5 or Celeron Processors
  • Wide Temperature Range

Technical
Downloads
Linked Products
CPUIntel iCore i5-7300U 3.5GHz
Celeron 3965U 2.2GHz
ChipsetSoC
RAMUp To 16GB DDR4
Interface2x RS232/RS422/RS485
4x USB ver 3.0
2x Ethernet/PoE 10/100/1000Mps
2x HDMI
Storage1x 2.5" SATA HDD
1x mSATA
Expansion1x Full-Size PCI Express Mini Card Slot (USB+PCI)
Operating SystemWIN10 IoT
Linux
Operating Temperature-10 to +50oC
Power Supply12VDC
Vibration Rating3G rms @ 5-500Hz (with SSD)
Protection RatingIP40
MountingWall Mount
Din-Rail
Vesa Mount
CatalogueeBOX560-512-FL DatasheetPDF 322KB
Axiomtek Heavy Duty Solutions BrochurePDF 8.2MB
Axiomtek Product Overview BrochurePDF 66.0MB
Axiomtek Corporate Company ProfilePDF 1.3MB
ManualeBOX560-512-FL User ManualPDF 2.9MB
eBOX560-512-FL Quick Start GuidePDF 4.2MB
DriversAxiomtek eBOX-512-FL DriversVarioushttp://www.axiomtek.com/Default.aspx?MenuId=Products&FunctionId=ProductView&ItemId=24153&upcat=144&C=eBOX560-512-FL
CertificationeBOX560-512-FL Declaration Of ConformityPDF 99KB
eBOX560-512-FL EMC CertificatePDF 459KB
eBOX560-512-FL LVD CertificatePDF 104KB
