Electronic digital indicators

shaft mounted, wide range, precise measurement, programmable, fieldbus communications

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

electronic indicators

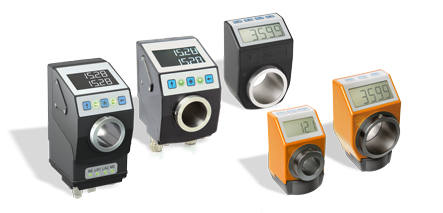

Shaft Mounted Electronic Digital Indicators

Measurement and indication of shaft position is clearly displayed on the Siko range of electronic digital indicators. Either User Programmable or Pre-Programmed, this range can be customised to suit the display requirements of each application. Fieldbus Communications, teach mode, in-position Status LEDs are a few of the features offered.

  • LCD Display
  • Absolute, Battery-Buffered
  • Programmable
  • Up To 0.0001mm Resolution

Technical
Downloads
Linked Products
Hollow Shaft Diameter6mm - 30mm
Housing MaterialPlastic
Display Digits5 - 6
Body ColourOrange
Black
Counting DirectionClockwise
Counter-Clockwise
InterfaceRS485
CANOpen
Ethernet/IP
EtherCAT
ProfiNet
PowerLink
Profibus (Gateway)
DeviceNey (Gateway)
Sercos (Gateway)
ControlNet (Gateway)
OptionsReducing Sleeve
Stainless Steel Shaft
Shaft Seal
IP Rating
Intermediate Plate
Torque Pin Type / Position
Battery Type
Connection Type
CatalogueAP05 DatasheetPDF 416KB
.
AP10 DatasheetPDF 722KB
.
AP10S DatasheetPDF 368KB
.
AP10T DatasheetPDF 363MB
.
AP20 DatasheetPDF 420KB
.
AP20S DatasheetPDF 464KB
.
APXX Replacement Battery DatasheetPDF 748KB
.
DE04 DatasheetPDF 924KB
.
DE10 DatasheetPDF 888KB
.
DE10P DatasheetPDF 373KB
.
RH Reduction Sleeve DatasheetPDF 237 KB
.
Position Indicator CataloguePDF 7.4MB
.
Siko Product Overview BrochurePDF 3.4MB
.
Monitored Changeover FlierPDF 1.1MB
.
Quick Changeover FlierPDF 1.1MB
.
We Retrofit FlierPDF 1.8MB
.
ManualsAP05 Installation InstructionsPDF 3.7MB
.
AP10 Installation InstructionsPDF 4.6MB
.
AP10S Installation InstructionsPDF 4.4MB
.
AP10T Installation InstructionsPDF 3.3MB
.
DE04 Installation InstructionsPDF 2.6MB
.
DE10 Installation InstructionsPDF 2.6MB
.
AP05 Quick Start GuidePDF 967KB
.
AP10 Quick Start GuidePDF 959KB
.
AP10S Quick Start GuidePDF 886KB
.
AP10T Quick Start GuidePDF 877KB
.
DE10P User Information - HardwarePDF 674KB
.
DE10P User Information - SoftwarePDF 1.1MB
.
AP05 CANOpen User ManualPDF 2.4MB
.
AP10 CANOpen User ManualPDF 2.0MB
.
AP10S CANOpen User ManualPDF 2.1MB
.
AP10T CANOpen User ManualPDF 1.7MB
.
AP05 SikoNetz5 User ManualPDF 1.6MB
.
AP10 SikoNetz5 User ManualPDF 1.7MB
.
AP10S SikoNetz5 User ManualPDF 1.6MB
.
AP10T SikoNetz5 User ManualPDF 1.1MB
.
Quick Reference GuideQuick Search Guide for Electronic IndicatorsPDF 471KB
.
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/electronic-digital-position-indicators-siko?info=siko%2Fpositionline%2Felektronisch_digitale_positionsanzeigen
SoftwareProTool DE Installation InstructionsPDF 2.8MB
.
ProTool DE Programming SoftwareZIP 9.2MB
.
CertificatesAPxx EU Conformity DeclarationPDF 112KB
.
DExx EU Conformity DeclarationPDF 102KB
.

Technical Information

Product technical details and product downloads

Click Here
