electronic displays

incremental or absolute, long life battery, led or LCD, low power consumption, high contrast

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

Electronic displays

Displays For Position Measurement

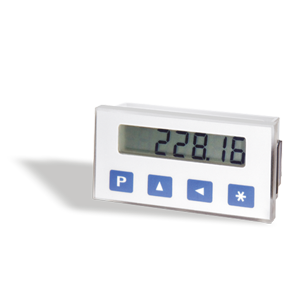

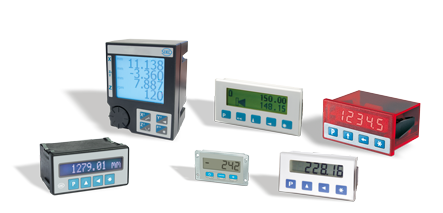

Siko provides a range of Electronic Displays, for incremental, absolute or quasi-absolute position measurement. The displays can be power from a mains or DC supply, or alternatively can be supplied with an integrated battery which offers a long service life. The displays have either LED or LCD illumination, can come with a variety of digits and push-buttons.

  • Incremental, Absolute or Quasi Absolute
  • LED or LCD Illumination
  • Battery Back-Up
  • Compact Size

Technical
Downloads
Linked Products
Resolution1µm - 10µm
Repeat Accuracy10µm - 100µm
Supply Voltage3V (Battery)
24VDC
110VAC
230VAC
InterfaceRS232
RS485
Measurement TypeIncremental
Absolute
Quasi Absolute
Protection ClassIP20 / IP60
Digits5 - 12
OptionsCable Length
Integrated/External Sensor
Interface
Mounting Bracket
CataloguesMA100/2 DatasheetPDF 477KB
MA501 DatasheetPDF 524KB
MA502 DatasheetPDF 479KB
MA503/2 DatasheetPDF 366KB
MA504/1 DatasheetPDF 354KB
MA506 DatasheetPDF 825KB
MA505 DatasheetPDF 477KB
MA508/1 DatasheetPDF 477KB
MA561 DatasheetPDF 553KB
MA564 DatasheetPDF 178KB
MA523/1 DatasheetPDF 423KB
MA503WL DatasheetPDF 399KB
Siko Product Overview BrochurePDF 3.4MB
MA523/1 Product FlierPDF 976KB
ManualsFor all Manuals, User Guides, Installations Instructionshttps://siko-embedded.partcommunity.com/?info=siko%2Fmagline%2Fmessanzeigen%2Fma523%5F1%2Fma523%5F1%5Fasmtab%2Eprj
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/displays-siko?info=siko%2Fmagline%2Fmessanzeigen
CertificatesEU Conformity Declaration -1PDF 103KB
EU Conformity Declaration -2PDF 103KB
ISO 9001 Quality CertificatePDF 239KB
RoHS/Reach/WEEE DeclarationPDF 239KB
