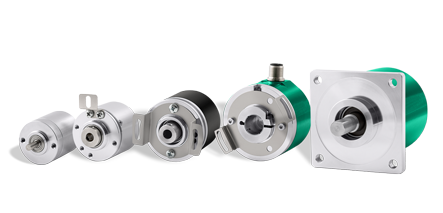

standard ABSOLUTE encoders

compact size, optical or magnetic sensing, high resolution, solid shaft or hollow bore, wide temperature range, high ip rating, wide range

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

ES58/ES58S

ESC58

Compact Industrial Single Turn Absolute Encoder

Robust industrial, single turn, absolute encoder with 58mm body diameter, servo flange or clamp flange, and with solid or blind hollow shaft. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses optical sensing, offering a maximum resolution of up to 13 Bit.

  • 58mm Body Diameter
  • Optical Sensing
  • Max Resolution 13 Bit
  • Single-Turn
  • Max Shaft 12mm Solid, 15mm Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter58mm
Maximum Absolute TurnsSingle
Maximum Resolution13 Bit
Output CircuitBit Parallel
SSI
Supply Voltage7.5 - 34VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionCable
M12 Connector
M23 Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed12000rpm
Maximum Enclosure RatingIP67
OptionsCable Length
Connector
Connection Position
Shaft Diameter
CatalogueES58/ES58S/ESC58 DatasheetPDF 195KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualES58/ES58S/ESC58 ManualZIP 933KB
.
ES58/ES58S/ESC58 Installation GuideZIP 2.8MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
