touch panels

Web panels & HMIs, android, linux, windows embedded, cloud integration, ip65, IP69K, stainless steel, wide temperature range

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

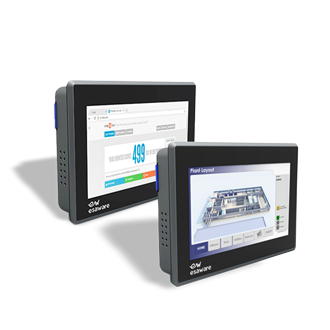

Web panels

Browser Based Industrial Touch Panels

The ESA range of web panels are brower based touch panels, available with Android or Linux operating systems. These capacitive touch panels provide a compatible browser with HTML5 and Web Socket, ideal for displaying and Web content.

  • Chrome/Chromium Browser
  • PTFE Coated Aluminium
  • 7" to 15.6" Capacitive Touch Screen
  • High Brightness / 16M Colours
  • Arm Cortex A9 Quad Core

Technical
Downloads
Linked Products
Display Size7"
15.6"
Display TypeTFT
Display Colours16 M
Display BacklightLED
Display Brightness500 cd/m2 (7")
300 cd/m2 (15.6")
Display Resolution1024 x 600 (7")
1366 x 768 (15.6")
Touch TechnologyCapacitive
ProcessorARM Cortex A9 Quad Core
RAM2 GB DDR3L
Flash8GB
BrowserChrome
WebView
Microbrowser
Automation Browser
Interface1x Fast Ethernet
1x Gigabit Ethernet
2x USB 2.0
1x RS232/485
Expansion Slot1x MINI PCI Express
Card Slot1x SDHC
Power Supply12 - 32VDC
Protection Rating ButtonIP66
Operating Temperature-10 to +50oC
CatalogueESA Android Web Panel DatasheetPDF 315KB
.
ESA Linux Web Panel DatasheetPDF 203KB
.
ESA Product Overview BrochurePDF 9.9MB
.
ManualESA Web Panel Installation GuidePDF 609KB
.
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/
CertificationESA EW107 EC Declaration Of ConformityPDF 209KB
.
