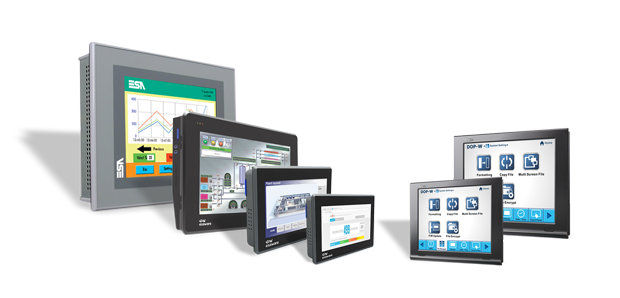

touch panels

Web panels & HMIs, android, linux, windows embedded, cloud integration, ip65, IP69K, stainless steel, wide temperature range

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

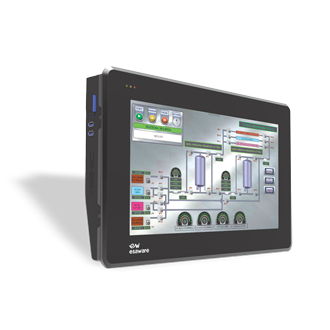

EW100

Industrial HMIs

The EW100 is the latest generation of ESA HMIs that combines visualisation, supervision and control for demanding industrial applications. This range utilises Windows Embedded Compact 7 Professional operating system and is powered by an ARM Cortex A8 1GHz processor. EW100 HMIs have a widescreen display which is LED backlit. The aluminium housing, which is PTFE coated, provides a robust and hard wearing solution. The range comes pre-installed with ESA's "EVERYWARE" runtime

  • Windows Embedded Compact 7 Pro
  • PTFE Coated Aluminium
  • 4.3" to 15.6" Capacitive Touch Screen
  • High Brightness / 16M Colours
  • Arm Cortex A9 Quad Core
  • Pre-Installed "EVERYWARE" runtime

Technical
Downloads
Linked Products
Display Size4.3"
7"
12.1"
15.6"
Display TypeTFT
Display Colours262 K (4.3")
16M (7", 12.1", 15.6")
Display BacklightLED
Display Brightness400 cd/m2 (4.3")
600 cd/m2 (7")
400 cd/m2 (12.1")
300 cd/m2 (15.6")
Display Resolution480 x 272 (4.3")
800 x 480 (7")
1280 x 800 (12.1")
1366 x 768 (15.6")
Touch TechnologyCapacitive
ProcessorARM Cortex A8 Quad Core
RAM256 MB DDR3 (4.3" & 7")
512 MB DDR3 (12.1" & 15.6")
Flash3GB
Serial PortsSP1 RS232/485/MP1/COM0
SP2 RS232/485/MPI/COM0
CAN
Profibus
Ethernet Ports1x 10/100MB (4.5")
2x 10/100MB (7", 12.1", 15.6")
USB Ports1x USB Host, 1x USB Device (4.3" & 7")
2x USB Host, 1x USB Device (12.1" & 15.6")
Card Slot1x SDHC/MMC
Power Supply12 - 32VDC
Protection Rating ButtonIP66
Operating Temperature-10 to +50oC
CatalogueESA EW100 HMI DatasheetPDF 74KB
.
ESA Product Overview BrochurePDF 9.9MB
.
ManualESA EW104 Installation GuidePDF 878KB
.
ESA EW107 Installation GuidePDF 921KB
.
ESA EW112 Installation GuidePDF 1.0MB
.
ESA EW115 Installation GuidePDF 1.1MB
.
ESA EW Mounting Bracket Installation InstructionsPDF 190KB
.
ESA AC Power Supply GuidePDF 179KB
.
ESA ATEX GuidePDF 394KB
.
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/?name=EW100AA&refid=564
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/?name=EW100AA&refid=564
CertificationESA EW100 EC Declaration Of ConformityPDF 265KB
.
ESA EW100 UL CertificatePDF 160KB
.
ESA EW ATEX DeclarationPDF 35KB
.
