Fieldbus ABSOLUTE encoders

integrated fieldbus communications, absolute, high resolution, single or Multi-turn, solid or blind hollow bore, high IP rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

EXO58EC/ EXM58EC

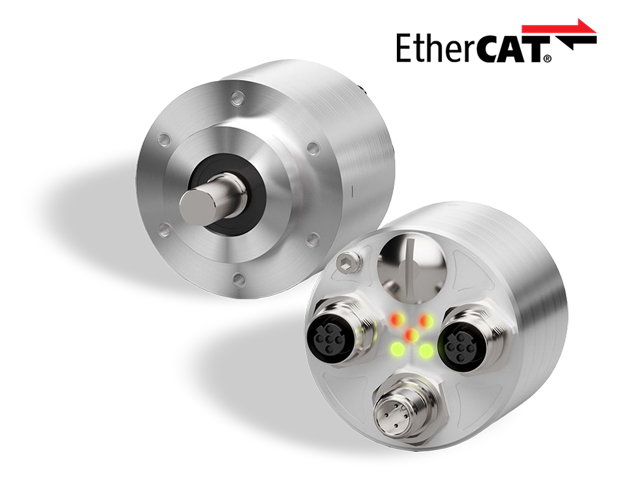

High Resolution Single or Multi-Turn Absolute Encoder with EtherCAT Interface

High resolution, single or multi-turn, absolute encoder with EtherCAT interface. Constructed from a robust corrosive resistant 6082 aluminium alloy 58mm diameter body, with stainless steel shaft. With servo flange or clamp flange, and either solid or blind hollow shaft. Uses optical sensing, offering a maximum 18 bit resolution and 14 bit turns.

  • EtherCAT Interface
  • 58mm Body Diameter
  • Optical Sensing
  • Single or Multi-Turn
  • 18 Bit Max Resolution, 14 Bit Turns
  • Max Shaft 12mm Solid Shaft, 15mm Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter58mm
Maximum Absolute TurnsSingle or 14 Bit Turns
Maximum Resolution18 Bit
Communication InterfaceEtherCAT
Supply Voltage10 - 30VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionM12 Connectors
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP65
OptionsShaft Diameter
Extension Cables
CatalogueEXO58EC/EXM58EC DatasheetPDF 268KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualEXO58EC/EXM58EC ManualPDF 4.7MB
.
EXO58EC/EXM58EC Quick RefereceeZIP 1.1MB
.
SoftwareEXO58EC/EXM58EC SoftwareZIP 3KB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
