EXO58PL/ EXM58PL

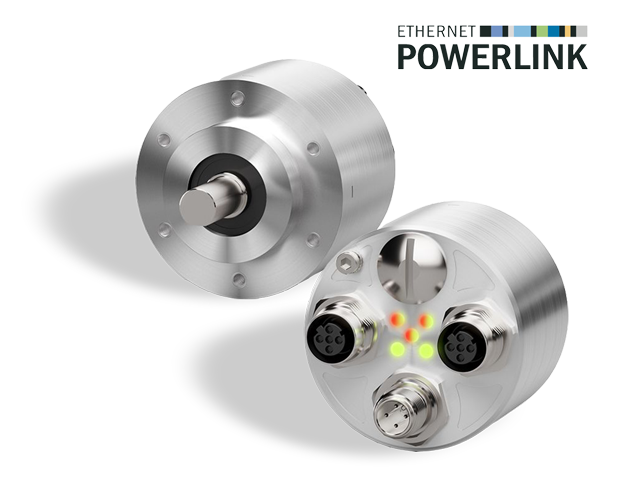

High Resolution Single or Multi-Turn Absolute Encoder with Powerlink Interface

High resolution, single or multi-turn, absolute encoder with Powerlink interface. Constructed from a robust corrosive resistant 6082 aluminium alloy 58mm diameter body, with stainless steel shaft. With servo flange or clamp flange, and either solid or blind hollow shaft. Uses optical sensing, offering a maximum 18 bit resolution and 14 bit turns.

  • Powerlink Interface
  • 58mm Body Diameter
  • Optical Sensing
  • Single or Multi-Turn
  • 18 Bit Max Resolution, 14 Bit Turns
  • Max Shaft 12mm Solid Shaft, 15mm Blind Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter58mm
Maximum Absolute TurnsSingle or 14 Bit Turns
Maximum Resolution18 Bit
Communication InterfacePowerlink
Supply Voltage10 - 30VDC
Shaft DesignSolid Shaft
Blind Hollow Bore
Max Shaft Diameter12mm Solid Shaft
15mm Blind Hollow Bore
Electrical ConnectionM12 Connectors
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP65
OptionsShaft Diameter
Extension Cables
CatalogueEXO58PL/EXM58PL DatasheetPDF 351KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualEXO58PL/EXM58PL Quick ReferencePDF 8.3MB
.
SoftwareEXO58PL/EXM58PL SoftwareZIP 15.7MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
