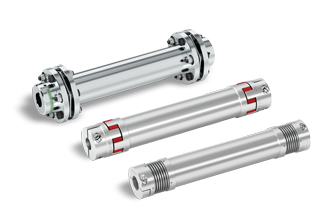

spacer shaft couplings

low inertia, dynamic performance, high torsional stiffness, backlash free, long life

Founded in 1967 by Dante Cavalli, under the name OMC, the company originally manufactured mechanical transmission components. In 2010 the company name was changed to ComInTec, to better reflect how the product range has developed over the years. The range now includes power transmission components, torque limiters, safety couplings, backlash free torque limiters, elastic couplings, disc couplings, backlash free couplings, variable speed pulleys, expanding pulleys, shaft collars and clamp collars. These components provide transmission connections, avoid accidental overloads, reduce machine stoppage times, increase productivity, and reduce maintenance and repair costs. Sold globally, the Comintec products are used in a wide variety of application and market sectors, and renowned for quality and reliability.

GAS/SG/dbse-AL

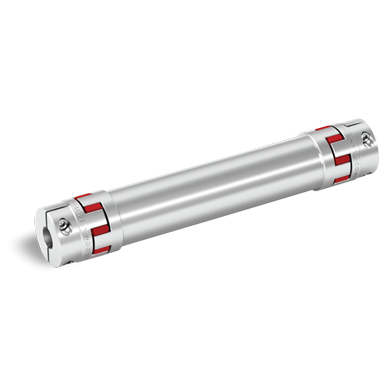

Backlash Free Jaw Spacer Coupling

Manufactured from fully turned aluminium, this range offers very low inertia. The flexible elastomeric element provides vibration dampening, allows for high shaft misalignment and also gives electrical insulation between each shaft. Various hub connections types are offered.

Backlash Free
Low Inertia
High Speed
Dynamically Balanced
Elastomeric Element

Technical

Downloads

Linked Products

Enquiries

Torque Range	Up To 2,080Nm
Bore	Up To 70mm
Body Diameter	30 - 80mm
Speed	Up To 4,000rpm
Torsional Rigidity	Low
Statically Balanced	No
Corrosion Resistant	On-Request
Misalignment Capability	High
High Frequency Reversal	No
Maintenance Free	No

Catalogue	GAS/SG/DBSE-AL Brochure	PDF 707KB	.
	Spacer Shaft Couplings Flier	PDF 3.3MB	.
	Shaft Couplings Catalogue	PDF 4.6MB	.
Dimensions	2D & 3D Configurator		http://www.tracepartsonline.net/(S(vyfvkjgks0bt5kl3kyfcehp5))/content.aspx?fwsid=COMINTEC&Lang=en&ttl=&st=0
