spacer shaft couplings

low inertia, dynamic performance, high torsional stiffness, backlash free, long life

Founded in 1967 by Dante Cavalli, under the name OMC, the company originally manufactured mechanical transmission components. In 2010 the company name was changed to ComInTec, to better reflect how the product range has developed over the years. The range now includes power transmission components, torque limiters, safety couplings, backlash free torque limiters, elastic couplings, disc couplings, backlash free couplings, variable speed pulleys, expanding pulleys, shaft collars and clamp collars. These components provide transmission connections, avoid accidental overloads, reduce machine stoppage times, increase productivity, and reduce maintenance and repair costs. Sold globally, the Comintec products are used in a wide variety of application and market sectors, and renowned for quality and reliability.

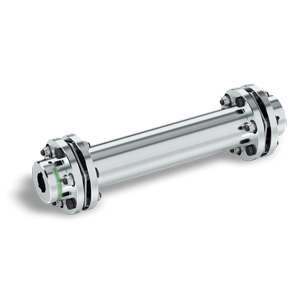

GTR/DBSE

Torsionally Rigid Disc Spacer Coupling

Designed to suit applications with high speed, high power, torsional rigidity and optimum power/weight ratio are important requirements. Composed on three elements: two fully turned steel hubs and a stainless steel disc pack. Offered statically or dynamically balanced to ensure smooth, vibration free rotation.

  • Torsionally Rigid
  • High Speed
  • Stainless Steel Disc Pack
  • High Power/Weight Ratio
  • Maintenance Free

Technical
Downloads
Linked Products
Torque RangeUp To 130,000Nm
BoreUp To 205mm
Body Diameter78 - 456mm
SpeedUp To 14,500rpm
Torsional RigidityHigh
Statically BalancedYes
Corrosion ResistantOn-Request
Misalignment CapabilityLow
High Frequency ReversalYes
Maintenance FreeYes
CatalogueGTR/DBSE BrochurePDF 708KB
Spacer Shaft Couplings FlierPDF 3.3MB
Shaft Couplings CataloguePDF 4.6MB
Technical ManualGTR Installation InstructionsPDF 489MB
Dimensions2D & 3D Configuratorhttp://www.tracepartsonline.net/(S(vyfvkjgks0bt5kl3kyfcehp5))/content.aspx?fwsid=COMINTEC&Lang=en&ttl=&st=0
