BLDC 230VAC

MAINs powered, compact size, wide speed range, excellent speed holding

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

GUB

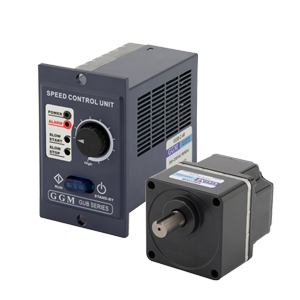

BLDC Geared Motor with Panel Mount Controller

The GUB package consist of compact BLDC geared motors with simple mains powered controller. WIth an integrated speed potentiometer, power switch, and pre-terminated motor cables, the GUB controller is very quick to installation and simple to operate. The BLDC motors are fitted with high resolution hall effect sensors giving excellent speed holding over a wide speed range. The motors offer a high efficiency and extremely compact design, ideal where space is of a premium.

  • Mains Powered - 230VAC
  • Powers 30W, 60W, 90W, 150W
  • Quick and Easy Installation
  • Excellent Speed Holding
  • Wide Speed Range
  • In-Line or Parallel Hollow Bore Gearboxes

Technical
Downloads
Linked Products
Motor Powers30W, 60W, 90W, 150W
Supply230VAC
(115VAC On Request)
Gearbox Rated Output TorqueUp To 70Nm
Gearbox Ratio5:1 - 200:1
Motor Max Speed4000rpm
Enclosure RatingIP65
Motor Frame Size60mm, 80mm, 90mm2
Motor Electrical ConnectionFlying Lead With Connector
Gearbox TypesIn-Line Helical
Parallel Hollow Bore
OptionsExtension Cables
CatalogueGGM BLDC Geared Motor & Controller Full CataloguePDF 5.3MB
.
GGM BLDC Selection GuidePDF 157KB
.
GUB Controller DatasheetPDF 762KB
.
B-Series Motor Datasheet - 30WPDF 1.1MB
.
B-Series Motor Datasheet - 60WPDF 1.1MB
.
B-Series Motor Datasheet - 90W-150WPDF 1.1MB
.
Operation InstructionsGUB Controller ManualPDF 762KB
DimensionsGUB Controller Dimensions SheetPDF 102KB
.
B-Series Motor DimensionsVarioushttp://www.ggm.co.kr/pages/wprod.en.php?scate=002003001
CertificateCE Certificate - GUB ControllersPDF 332KB
.
CE Certificate - BLDC MotorsPDF 608KBTBC
