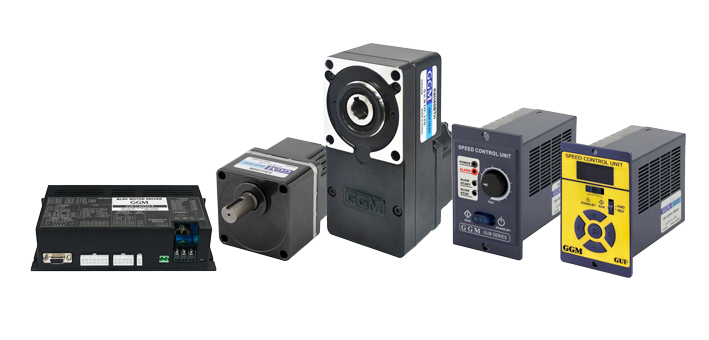

BLDC 230VAC

MAINs powered, compact size, wide speed range, excellent speed holding

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

GUF

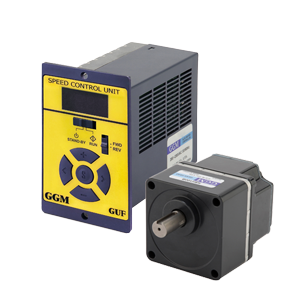

BLDC Geared Motor with Panel Mount Digital Controller

The GUF package consist of compact BLDC geared motors with mains powered digital controller. The desired motor speed can be set by 8 internal programmable jog speed parameters, which are selected by the digital inputs. Alternatively the speed can be altered using the integrated push buttons on the front of the controller. Various other parameters can be set to suit the application requirements. The BLDC motors are fitted with high resolution hall effect sensors giving excellent speed holding over a wide speed range. The motors offer a high efficiency and extremely compact design, ideal where space is of a premium.

  • Mains Powered - 230VAC
  • Powers 30W to 400W
  • Quick and Easy Installation
  • Excellent Speed Holding
  • 8 Internal Jog Speeds
  • In-Line or Parallel Hollow Bore Gearboxes

Technical
Downloads
Linked Products
Motor Powers30W, 60W, 150W, 200W, 400W
Supply230VAC
(115VAC On Request)
Gearbox Rated Output TorqueUp To 70Nm
Gearbox Ratio5:1 - 200:1
Motor Max Speed4000rpm
Enclosure RatingIP65
Motor Frame Size60mm, 80mm, 90mm, 104mm2
Motor Electrical ConnectionFlying Lead With Connector
Gearbox TypesIn-Line Helical
Parallel Hollow Bore
OptionsExtension Cables
CatalogueGGM BLDC Geared Motor & Controller Full CataloguePDF 5.3MB
.
GGM BLDC Selection GuidePDF 157KB
.
GUF Controller DatasheetPDF 1.3MB
.
F-Series Motor Datasheet - 30WPDF 1.1MB
.
F-Series Motor Datasheet - 60WPDF 1.1MB
.
F-Series Motor Datasheet - 150WPDF 1.1MB
.
F-Series Motor Datasheet - 200W - 400WPDF 1.1MB
.
Operation InstructionsGUF Controller ManualPDF 10.7MB
.
DimensionsGUF Controller Dimensions Sheet - 30W - 150WPDF 123KB
.
GUF Controller Dimensions Sheet - 150W - 200WPDF 154KB
.
F-Series Motor DimensionsVarioushttp://www.ggm.co.kr/pages/wprod.en.php?scate=002003001
CertificateCE Certificate - GUF ControllersPDF 4.3MB
.
CE Certificate - BLDC MotorsPDF 608KBTBC
