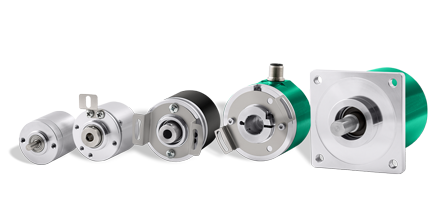

standard incremental encoders

wide range, Compact size, optical or Magnetic sensing, solid shaft or hollow bore, high resolution, wide temperature range, high maximum rotational speed, high ip rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

I28

Standard Compact Incremental Encoder

Miniature incremental encoder with 28mm body diameter. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses optical sensing offering a maximum resolution of up to 2048ppr. For installation in confined spaces, and ideally suited to office equipment, medical, laboratory and light industrial applications.

  • 28mm Body Diameter
  • Optical Sensing
  • Max Resolution 2048ppr
  • Wide Range of Resolutions
  • 5mm Max Diameter Solid Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Housing Diameter28mm
Maximum Resolution2048ppr
Output CircuitNPN
Push-Pull
Line Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid
Max Shaft Diameter5mm
Electrical ConnectionCable
Operating Temperature-25oC - +85oC
Maximum Rotational Speed3000RPM
Enclosure RatingIP54
OptionsCable Length
CatalogueI28 DatasheetPDF 122KB
Lika Product Overview BrochurePDF 6.0MB
Lika Product News FlierPDF 957KB
ManualI28 Installation ManualPDF 670KB
CertificatesEU Declaration Of ConformityPDF 789KB
UL Certificate Of CompliancePDF 415KB
RoHs/WEEE Declaration Of ConformityPDF 425KB
Reach Declaration Of ConformityPDF 6.8MB
ISO 9001 Quality CertificatePDF 460KB
