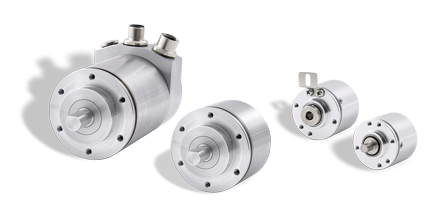

stainless steel encoders

stainless steel housing & shaft, corrosive resistant, incremental or absolute, high resolution, fieldbus interface options, high IP Rating

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

I58SK

Robust Incremental Encoder

General purpose industrial incremental encoder constructed from stainless steel AISI 303 body, flange and output shaft. Corrosive resistant, with IP67 protection rating, ideal for food industry or harsh environments. Uses magnetic sensing offering a maximum resolution of up to 10,000ppr.

  • 58mm Body Diameter
  • Optical Sensing
  • Max Resolution 10000ppr
  • Wide Range of Resolutions
  • Max 12mm Diameter Solid Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Housing Diameter58mm
Maximum Resolution10000ppr
Output CircuitNPN
PNP
Push-Pull
Line Driver
Universal Circuit
Sin/Cos
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid Shaft
Max Shaft Diameter12mm
Electrical ConnectionCable
M23 Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000RPM
Maximum Enclosure RatingIP67
OptionsCable Length
M23 Connector
Connection Position
CatalogueI58SK DatasheetPDF 290KB
Lika Product Overview BrochurePDF 6.0MB
Lika Product News FlierPDF 957KB
ManualI58SK Installation ManualPDF 623KB
CertificatesEU Declaration Of ConformityPDF 789KB
UL Certificate Of CompliancePDF 415KB
RoHs/WEEE Declaration Of ConformityPDF 425KB
Reach Declaration Of ConformityPDF 6.8MB
ISO 9001 Quality CertificatePDF 460KB
