box ipcs

Rugged design, fanless, slimline, high performance, Wide temperature range, din-rail mounting, shock resistant

Founded in 1990, Axiomtek is a leading manufacturer of industrial computers. Since its inception, Axiomtek has successfully gained worldwide recognition for innovative designs and outstanding customer satisfaction. As a leading industrial pc manufacturer, Axiomtek is devoted to producing state-of-the-art solutions. The comprehensive product lines include embedded boards, system modules, single board computers, embedded systems, industrial barebone pcs, network appliances, touch panel computers, human machine interfaces, medical pcs, industrial network devices, and digital signage. Axiomtek has a growing reputation for reliability and and valuable system integration, from board-level design-in to system-level design. Key vertical markets include automation, transportation, gaming, power utility, POS, kiosk, retail, network security, medical, digital signage, green power and more.

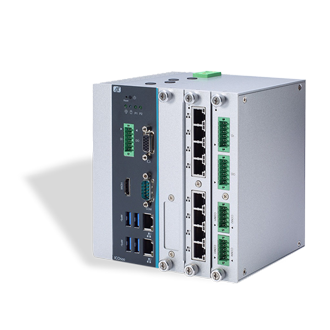

DIN-Rail Embedded Box IPC

The ICO500-518 Fanless Embedded System utilises 7th generation Intel Core i7, i5, i3 or Celeron Processors. Offering dual modular i/o expansion, and compact design, this industrial box pc is ideally suited to gateway applications. Other features include wide operating temperature range and wide voltage DC power range.

  • i7, i5, i3 or Celeron
  • 2 Plug-In I/O Module Slot
  • Fanless & Compact Design
  • Very Wide Temperature Range

Linked Products
CPUIntel iCore i7-7600U 2C 2.8GHz
Intel iCore i5-7300U 2C 2.6GHz
Intel iCore i3-7100U 2C 2.4GHz
Intel Celeron 3965U 2.2GHz
Interface1x HDMI
2x Ethernet GBit LAN
4x USB 3.0
1x VGA
1x RS232/422/485 DB9
1x Isolated DIO (4 In / 4 Out)
1x 2.5" Sata Drive Tray
2x PIM Slots
4x Antenna
Storage1x 2.5" SATA HDD
1x CFast Card
Expansion2x Full-Size PCI Express Mini Card Slot
1x External SIM Card Slot
Operating SystemWIN10
Operating Temperature-40 to +70oC
Power Supply12 - 48VDC
Vibration Rating3G RMS @ 5-500Hz (with SSD)
Protection RatingIP00
MountingDin-Rail (Standard)
Wall Mounting (Optional)
CatalogueICO500-518 DatasheetPDF 439KB
Axiomtek Heavy Duty Solutions BrochurePDF 8.2MB
Axiomtek Product Overview BrochurePDF 66.0MB
Axiomtek Corporate Company ProfilePDF 1.3MB
ManualICO500-518 User ManualTBC
ICO500-518 Quick Start GuideTBC
DriversICO500-518 DriversTBC
CertificationICO500-518 Declaration Of ConformityTBC
ICO500-518 EMC CertificateTBC
ICO500-518 LVD CertificateTBC
