ICS

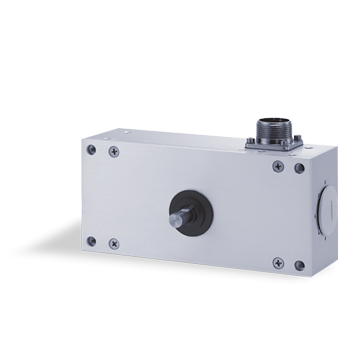

Linear Measurement Incremental Encoder

Robust Heavy Duty Incremental encoder designed for linear measurement ideal for rack and pinion or metric wheel systems. With corrosive resistant aluminium housing, for use in demanding applications. Spring loaded shaft for absorbing mounting misalignment.

  • Ideal For Linear Measurement
  • Corrosive Resistant Body
  • Optical Sensing
  • Max Resolution 2500ppr
  • 16mm Diameter Solid Output Shaft

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Size53mm x 172mm x 80mm
Maximum Resolution2500ppr
Output CircuitNPN
PNP
Push-Pull
Liner Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid Output Shaft
Shaft Diameter12mm
Electrical ConnectionMIL Connector
Operating Temperature-25oC - +85oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP67
OptionsShaft Position
Connector Position
Absolute Measurement
