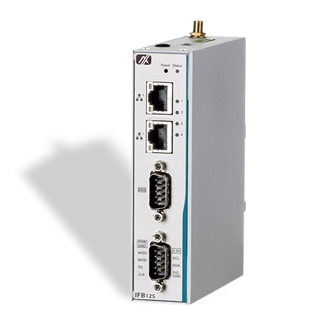

Robust RISC Based DIN-Rail Compact Box IPC

The IFB125 is powered by the low-power Freescale i.MX6UL processor in the ARM Cortex A7 micro architure. Supporting a very wide temperature range and extremely high vibration levels, the IFB125 is ideally suited to demanding installations. It is powered by a 9-48V DC supply, with a lockable terminal block connector. Focussed on meeting IoT requirements, the IFB125 supports multiple communication interfaces for maximum flexibility.

  • Extremely Compact
  • Din-Rail Mounting
  • 5G Shock / -40 to 70oC
  • 9 to 48VDC

Linked Products
CPURISC-Based i.MX 6UltraLite 528MHz
Interface1x RS232/422/485
2x Ethernet 10/100 Mbps
1x Relay
1x USB 2.0
1 DIO (2 In / 1 Out)
Wireless1x PCI Express Mini Card Slot
1x SIM Card Socket
Operating SystemLinux
Operating Temperature-40 to +70oC
Power Supply9 - 48VDC
Vibration Rating5G rms @ 5-500Hz (with SSD)
Protection RatingIP00
MountingWall Mount
CatalogueIFB125 DatasheetPDF 307KB
Axiomtek Heavy Duty Solutions BrochurePDF 8.2MB
Axiomtek Product Overview BrochurePDF 66.0MB
Axiomtek Corporate Company ProfilePDF 1.3MB
ManualIFB125 User ManualPDF 677KB
IFB125 Quick Start GuidePDF 269KB
DriversAxiomtek IFB125 DriverVarious
