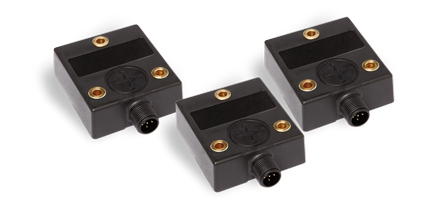

inclinometer tilt sensors

One or two plane measurement, analogue or digital interface, high ip rating, suitable for harsh environments, programmable

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

inclinometers

Sensors For Tilt Measurement

Inclinometers are measurement devices for determining the tilt/inclination of a surface that the devices is mounted on. Siko's inclinometers use the MEMS principle (Micro Electronic Mechanical System) in which a series of electrodes are housed in a hermetically sealed ASIC. The capacitive voltage between the electrodes is continuously measured. The measurement can be done in either one plane (0-360o) or in two planes. These devices can offer a system accuracy of 0.1o and a resolution of 0.01o . The output signal provided can be analogue (0-10V or 4-20mA) or digital (RS232 or CANopen). These devices can be programmed to suit the specific application requirements.

  • One or Two Plane Measurement
  • Analogue or Digital Interface
  • High IP Rating
  • Programmable

Technical
Downloads
Linked Products
Resolution0.01o
Repeat Accuracy0.1o
Outut Signal0-10V
4-20mA
RS232
CANopen
Measurement AxesOne
Two
Measurement Range0-360o (Single Axis)
-80o - +80o (Two Axes)
Protection ClassIP68 / IP69K
CataloguesIKM360R DatasheetPDF 1.3MB
IK360 DatasheetPDF 568KB
IMS360 DatasheetPDF 548KB
Siko Product Overview BrochurePDF 3.4MB
Mobile Automation FlierPDF 6.2MB
Medical & Laboratory FlierPDF 1.0MB
ManualIKM360R Installation InstructionsPDF 2.6MB
IKM360R User Manual CANopenPDF 1.6MB
IKM360R User Manual CANopen-SafetyPDF 1.9MB
IK360 Installation InstructionsPDF 402KB
IK360 Quick Start InstructionsPDF 404KB
IK360 CANopen User ManualPDF 656KB
IMS360 Installation InstructionsPDF 980KB
IMS360 Quick Start GuidePDF 751KB
Dimensions2D & 3D Configuratorhttp://siko-embedded.partcommunity.com/3d-cad-models/sso/inclinometer-tilt-sensors-siko?info=siko%2Fmagline%2Finklinometer_neigungssensoren
CertificatesEU Conformity DeclarationPDF 103KB
ISO 9001 Quality CertificatePDF 239KB
RoHS/Reach/WEEE DeclarationPDF 239KB
