Ix58/cx58

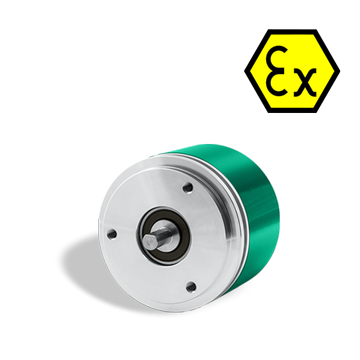

Compact Explosion Proof Incremental Encoder

Incremental Encoder certified to ATEX CAT3, zones 2 & 22, with 58mm body diameter, servo or clamp flange, and solid output shaft. Constructed from a robust corrosive resistant 6082 aluminium alloy body, with stainless steel shaft. Uses optical sensing offering a maximum resolution of up to 10000ppr.

  • 58mm Body Diameter
  • Zones 2 & 22
  • Optical Sensing
  • Max Resolution 10000ppr
  • Wide Range of Resolutions
  • Max 12mm Diameter Solid Shaft, 15mm Blind Hollow Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter58mm
ATEX Zones2, 22
Maximum Resolution10000ppr
Output CircuitNPN
PNP
1Vpp
Push-Pull
Line Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignSolid Output Shaft
Max Shaft Diameter12mm Solid Output Shaft
15mm Blind Hollow Bore
Electrical ConnectionCable
Operating Temperature-25oC - +85oC
Maximum Rotational Speed12000rpm
Maximum Enclosure RatingIP65
OptionsCable Length
Connection Position
Shaft Diameter
CatalogueIX58/CX58 DatasheetPDF 228KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualIX58/CX58 Installation ManualPDF 3.4MB
.
CertificatesIX58/CX58 ATEX CertificatePDF 1.4MB
.
EU Declaration Of ConformityPDF 415KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
