magnetic rings

incremental or absolute, high repeat accuracy, single or multiple tracks, suitable for harsh environments

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

magnetic rings

Incremental or Absolute Rotary Measurement

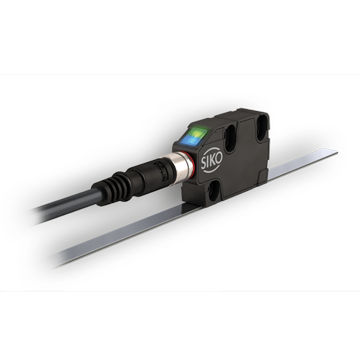

Siko's Magnetic Rings are magnetically encoded plastic bands which are supplied unmounted or bonded to a solid ring or flange. To prevent measurement inaccuracy at the tape joint, the bonding is done first, and then followed by the magnetic encoding. Due to Siko's high quality manufacturing process, 360o measurement is possible. A key benefit of this technology is that the measurement is done without any contact between the magnetic ring and magnetic sensor, meaning there are no wearing parts, whilst also being insensitive to dust, water and non-ferrous debris.

  • Suitable For Harsh Environments
  • Withstands Shock Loads
  • Bearingless
  • Compact Size
  • Incremental or Absolute

Technical
Downloads
Linked Products
Pulses Per RevolutionUp To 18 bit
DiameterUp To 406mm
ResolutionUp To 0.0018o
System Accuracy±0.1o
Maximum Repeat Accuracy±1 Increment
Protection ClassUp To IP67
Measurement TypeIncremental
Absolute
OptionsReference Point
Pole Number
Bore Diameter
Fixing Method
CataloguesMR200 DatasheetPDF 342KB
MR320 DatasheetPDF 594KB
MRI01 DatasheetPDF 482KB
MR500 DatasheetPDF 620KB
MBR100 DatasheetPDF 193KB
MBR200 DatasheetPDF 194KB
MBR320 DatasheetPDF 194KB
MBR500 DatasheetPDF 220KB
MRAC501 DatasheetPDF 321KB
MRAC506 DatasheetPDF 303KB
Siko Product Overview BrochurePDF 3.4MB
ManualsMBR100 Installation InstructionsPDF 168KB
MBR200 Installation InstructionsPDF 168KB
MBR320 Installation InstructionsPDF 168KB
MBR500 Installation InstructionsPDF 168KB
ManualsFor all Manuals, User Guides, Installations Instructionshttps://www.siko-global.com/en-gb/products/magline-magnetic-linear-and-angular-measurement/magnetic-bands
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/magnetic-rings-siko?info=siko%2Fmagline%2Fmagnetringe
CertificatesISO 9001 Quality CertificatePDF 680KB
RoHS/Reach/WEEE DeclarationPDF 239KB
