mc403

Motion Controller

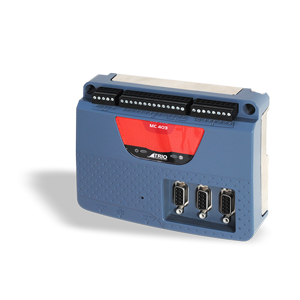

The MC403 uses a high performance ARM11 532 Mhz Processor and offers two voltage outputs and three flexible axis ports, that can be configured for up to two closed loop servo axes or three step/direction outputs. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite.

  • High Performance Motion
  • 2 Axes Closed Loop or 3 Axes Open Loop
  • 4 Bi-Directional Inputs/Outputs, 8 Digital Inputs
  • Linear, Circular, Helical & Spherical Interpolation
  • Multi-Tasking BASIC programming

Technical
Downloads
Linked Products
Supply Voltage24VDC
Maximum Axes3x Open Loop
2x Closed Loop
Maximum Virtual Axes16
ProcessorARM 11
Clock Frequency532 MHz
Position Register Accuracy64 Bit
Real Time ClockNo
Flash Memory32 x 16000 Values
User Memory8 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs2
0 - 10V Analogue Inputs2
Digital Bi-Directional Inputs/Outputs4
Digital Inputs8
Registration Inputs6
CommunicationsCANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
RS232
RS485
CatalogueMC403 DatasheetPDF 6.8MB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualMC405 Quick Start GuidePDF 243KB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarioushttp://www.triomotion.uk/public/products/p821-p825.php
Dimensions2D and 3D CAD DrawingsZIP 8.0MB
CertificatesEC Declaration Of Conformity - P821PDF 89KB
EC Declaration Of Conformity - P822PDF 89KB
EC Declaration Of Conformity - P822PDF 89KB
