Motion control

1-64 axes, high speed, linear, circular, helical or spherical interpolation, user friendly basic programming or iec61131-3, motion + pC solution

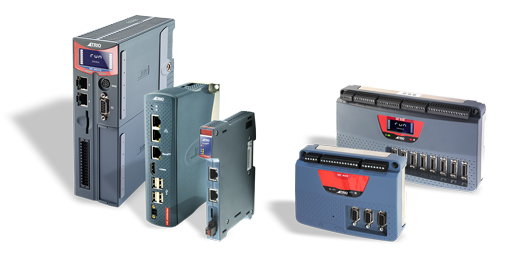

Trio Motion Technology is a specialised designer of high performance motion control technology for automation applications, encompassing the control of moving parts of machines, robots or motors, with high precision. The main components involved typically include a motion controller, drives and motors or actuators. Trio Motion Technology has been manufacturing high-quality motion controllers branded Motion Coordinators since 1987. Their comprehensive range allows economical, flexible and seamless control of 1 to 128 axes of servo motors, stepper motors, piezo motors or hydraulic systems. Trio products can be found in virtually every servo and stepper application.

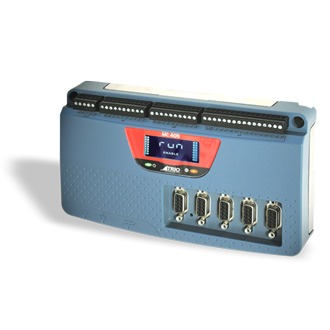

mc405

Motion Controller

The MC405 uses a high performance ARM11 532 Mhz Processor and offers four voltage outputs and five flexible axis ports, that can be configured for up to five pulse and direction output axes or four closed loop servo axes. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite.

  • High Performance Motion
  • 4 Axes Closed Loop or 5 Axes Open Loop
  • 8 Bi-Directional Inputs/Outputs, 8 Digital Inputs
  • Linear, Circular, Helical & Spherical Interpolation
  • Multi-Tasking BASIC programming

Technical
Downloads
Linked Products
Supply Voltage24VDC
Maximum Axes5 Open Loop (P826)
4 Closed Loop (P827)
Maximum Virtual Axes16
ProcessorARM 11
Clock Frequency532 MHz
Position Register Accuracy64 Bit
Real Time ClockYes
Flash Memory32 x 16000 Values
User Memory8 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs4
0 - 10V Analogue Inputs2
Digital Bi-Directional Inputs/Outputs8
Digital Inputs8
Registration Inputs8
CommunicationsCANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
RS232
RS485
CatalogueMC405 DatasheetPDF 7.2 MB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualMC405 Quick Start GuidePDF 1.3MB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarioushttp://www.triomotion.uk/public/products/p826-p827.php
Dimensions2D and 3D CAD DrawingsZIP 9.6MB
CertificatesEC Declaration Of Conformity - P826PDF 89KB
EC Declaration Of Conformity - P826PDF 89KB
