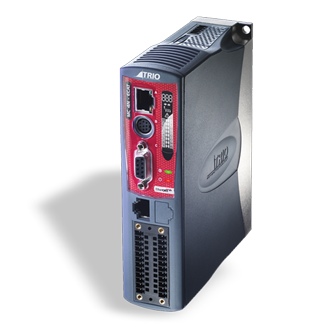

MC4N-ECAT

Motion Controller

The MC4N-ECAT is a high performance motion controller dedicated to controlling either servo or stepper axes via EtherCAT real time bus. Using an upgraded version of the 532MHz ARM 11 Processor, makes the MC4N-ECAT ideal for large scale multi-axes applications. Control of up to 32 Axes and 1024 I/O is possible. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite. Additionally IEC61131-3 programming language is available for softPLC functionality

  • High Performance Motion
  • 32 Axes Motion Control
  • Integrated EtherCAT Communications
  • Linear, Circular, Helical & Spherical Interpolation
  • Multi-Tasking BASIC programming
  • IEC61131-3 softPLC

Technical
Downloads
Linked Products
Supply Voltage24VDC
Maximum Axes32x Networked Axes
32x Virtual Axes
1x Discrete Wired Axes
Maximum Virtual Axes32
ProcessorARM 11
Clock Frequency532MHz
Position Register Accuracy64 Bit
Real Time ClockYes
Flash Memory32 x 16000 Values
User Memory8 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs0
0 - 10V Analogue Inputs0
Digital Bi-Directional Inputs/Outputs8
Digital Inputs8
Registration Inputs4
CommunicationsCANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
RS232
RS485
CatalogueMC4N-ECAT DatasheetPDF 534KB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualMC4N-ECAT Quick Start GuidePDF 344KB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarioushttp://www.triomotion.uk/public/products/p900.php
Dimensions2D and 3D CAD DrawingsZIP 12.9MB
CertificatesEC Declaration Of Conformity - P900PDF 89KB
EC Declaration Of Conformity - P901PDF 89KB
EC Declaration Of Conformity - P902PDF 89KB
EC Declaration Of Conformity - P903PDF 89KB
EC Declaration Of Conformity - P904PDF 89KB
UL DeclarationPDF 108KB
