Helmholz produces a comprehensive range of automation components ranging from decentralised I/O systems, switches and repeaters, gateways and firewalls, to integrated remote maintenance solutions. Founded in 1988, the business has been at the forefront of developing user friendly and innovative automation components. Initially established as an engineering company for software and plant commissioning, two years later the first Siemens S5 products were launched. Today employing 85 people the company serves its worldwide customers through a network of sales offices and distributors. Assembly and inspection takes place at the company headquarters in Großenseebach, Germany. High standards of quality and performance, in accordance to ISO 9001:2015, have provided the foundation for Helmhoz success over the past 30 years.

Profibus Repeater

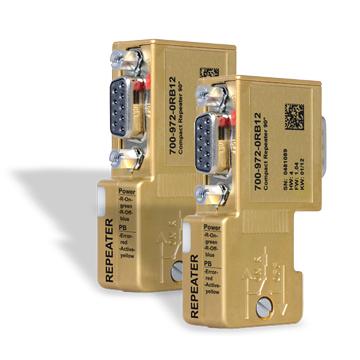

Profibus-DP Compact Repeater

The patented Profibus compact repeater offers transfer rates of 9.6kbps to 12Mbps. The transmission signals are regenerated by the repeater and re-sent so that faults in the line are largely eliminated. It is a great alternative to conventional repeaters due to its performance, size and price. It can be used for bus extension (up to 1 km with 2 PROFIBUS compact repeaters), to increase the number of participants, and to expand the system. MPI networks are supported. The compact repeater allows separate segments, which can be plugged directly into the PG connection of an existing Profibus connector. Due to the compact design, no additional space is needed in the control cabinet. Additionally no separate power is required, because the Profibus compact repeater uses the 5V power supply. The integrated status LEDs provide a quick overview on the current bus status.

  • Very Compact Solution
  • Bus Extensions Or Spur Connections
  • Increase Nr Of Participants
  • MPI Networks Supported
  • Status LEDs, Electrical Isolation
  • No Power Supply

Technical
Downloads
Linked Products
Profibus Interface1x 9.6/12Mbps
Profibus-DP
Cable Outlet90o
PG SocketYes
Cable TypeProfibus
Wire Size1.0mm2
Cable Diameter8mm
Status LEDs1x LED (4 Colour)
Voltage Supply5VDC
Temperature Range0oC to +60oC
CatalogueProfibus Compact Repeater DatasheetPDF 1.4MB
Profibus Product Summary BrochurePDF 3.2MB
ManualProfibus Compact Repeater Quick GuidePDF 1.5MB
