PC-MCAT 64

Motion Controller

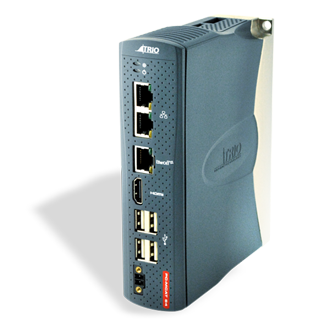

The PC-MCAT 64 is an innovative Motion + PC solution. A powerful quad core Intel Atom processor is used to power both a high performance motion controller and a compact PC that can run User applications within Microsoft Windows. The PC-MCAT 64 software uses a real-time extension to allow both Windows and the motion controller to run directly on their own processor cores. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite. Additionally IEC61131-3 programming language is available for softPLC functionality and PC based languages such as "C" can be installed within the Windows environment.

  • Combined Motion + PC Solution
  • Up To 64 Axes Motion Control
  • Integrated EtherCAT Communications
  • Multi-Tasking BASIC programming
  • IEC61131-3 softPLC
  • Supports Windows Applications
  • Integrated GBit Ethernet Port

Technical
Downloads
Linked Products
Supply Voltage24VDC
Maximum Axes64x Networked Axes
Maximum Virtual Axes64
ProcessorINTEL ATOM E3845 Quad Core
Clock Frequency1910MHz
Position Register Accuracy64 Bit
Real Time ClockYes
Flash Memory32 x 16000 Values
User Memory640 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs0
0 - 10V Analogue Inputs0
Digital Bi-Directional Inputs/Outputs0
Digital Inputs0
Registration Inputs0
CommunicationsEthernet
Ethernet/IP (Optional)
MODBUS-RTU (Optional)
MODBUS-TCP/IP
CataloguePC-MCAT 64 DatasheetPDF 5.8MB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualPC-MCAT 64 Quick Start GuidePDF 1.4KB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarioushttp://www.triomotion.uk/public/products/p760.php
Dimensions2D and 3D CAD DrawingsZIP 77.4MB
