planetary gearboxes

designed for dynamic applications, wide range of types, sizes & ratios, low backlash, high efficiency, maintenance free, long lifetime

Founded in 1990, Sesame Motor Compnay has almost 30 years experience of designing and manufacturing motors and gearboxes. Sesame has a modern 7000m2 factory, located at Taichung in Taiwan, uses the latest starte of the art production machinery and quality control equipment, together with a modern ERP system, ensuring fast availability and short leadtimes. Sesame’s success is based on customer satisfaction, high service levels, best quality and fastest delivery. Their products have achieved high market share in Taiwan, and they are gaining a growing reputation globally. Sesame continually invests in research and development, and their products offer high precision, high quality, low noise and high efficiency. Their products are used in a wide variety of industry sectors such as tool machines, industrial robots, semiconductor devices, aircraft, medical, rehabilitation equipment, electric scooters, automated storage systems, green energy, testing equipment, food machinery, bakery equipment and general automation equipment. Sesame offers CE, CCC, UL, ISO9001 and ISO14001 certification.

planetary

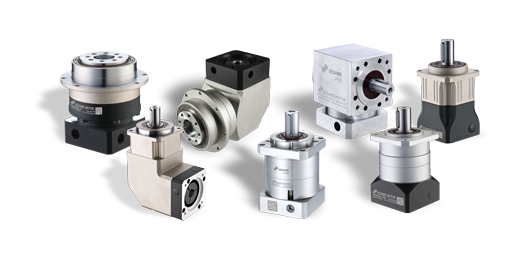

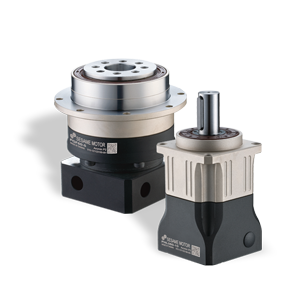

Servo Planetary Gearboxes

Sesame’s planetary gearboxes are designed for servo applications requiring low backlash, high dynamic performance, compact size and long lifetime. The range includes premium, high precision, standard and economy ranges, optimised to suit the application requirements. Offered with a variety of backlash levels, the Sesame gearbox range includes standard output shaft variants, output flange shafts and right angle gearbox solutions. The wide range of sizes and designs allows optimal selection, with the range including spur and helical gears. The internal gear ring and housing are manufactured from a single component, ensuring maximum rigidity and concentricity. A wide range of ratios and housing designs, results in interchangeability with other manufacturers. Special surface treatments, paint finishes, and stainless steel are available for those more demanding environments.

  • Dynamic Performance
  • Output Shaft, Output Flange, Right Angle Types
  • Low Backlash
  • Special Surface Treatments

Technical
Downloads
Linked Products
Gearbox Rated Torque11Nm - 2000Nm
Gearbox Ratio3:1 - 1000:1
Gearbox Size42 - 255
Backlash1 To 15 Arc Mins
IP RatingIP65
Housing MaterialAluminium, Steel, Stainless Steel

Options

Reduced Backlash
Surface Treatment
Motor Flange
Keyed or Plain Shaft
Stainless Steel Shaft
CatalogueMain Planetary Gearbox CataloguePDF 38MB
Stainless Steel Gerbox FlierPDF 3.0MB
Servo Bevel Gearbox FlierPDF 5.6KB
DatasheetsPlanetary Gearbox Operation ManualPDF 6.1MB
Planetary Gearbox Cross Reference GuidePDF 30KB
DimensionsCAD Drawingshttps://www.sesamemotor.com.tw/en/sa
