Linear actuators

compact design, comprehensive range, high IP rating, long life, different materials & surface treatments

SIR Srl started its humble beginnings in 1986, in a small facility in Cormano, Italy, where it first started producing gearboxes. Today, the company’s product range has evolved, and now SIR have become a renowned specialist in the design and manufacture of Linear actuators and associated drive systems. The company became part of the Amer Group in 1993, which has design and production facilities in various locations around the world. SIR has a strategy of ongoing and continuous investment in new technologies, product developments, production efficiencies and development of their team. As a result they are able to anticipate the fast and dynamic changes of the market and be an active part in the successes of their trading partners.

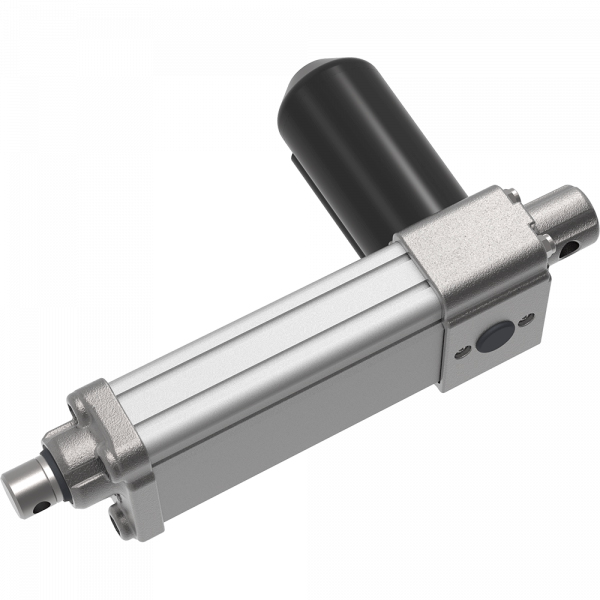

Compact Right Angle Linear Actuator

The S-Line right angle linear actuator from SIR offers a compact and robust design, with rated forces up to 800N. This range is available with customisable stroke and retraction lengths, front and rear fixing options, encoder feedback. Options also include integrated / adjustable limit switches and anti-rotation function

  • Compact & Robust Design
  • Full Metal Body Construction
  • 12VDC, 24VDC or 36VDC motor
  • Customisable Stroke & Retraction Length
  • Integrated & Adjustable Limit Switches Available

Linked Products
Rated ForceUpto 800N
Rated SpeedUpto 51mm/s
Duty CycleS3 10% (based on 10mins)
IP RatingIP44
Increased IP rating on request
Standard Stroke50 - 300mm
(longer lengths available on special request)
Motor Supply12VDC
Stainless steel rod available on request
Operating Temperature-10ºC to +60ºC
CatalogueS-Line DatasheetPDF 1.3MB
Accessories DatasheetPDF 3.2KB
SIR Main CataloguePDF 9.3MB
DimensionsA0-01ZIP 209KB
A0-01/MZIP 472KB
A0-01/VZIP 294KB
CertificationsISO 9001 CertificatePDF 1.4MB
