Scara robots

High speed, high accuracy, high repeatability, smooth motion, fast cycle time

Founded in 1971 in Taiwan, Delta first began manufacturing switch mode power suppliers. Today the company has become a leading global manufacturer in the field of industrial automation, power electronics and energy management. Since the launch of its first Electrical Drives products in 1995, Delta now offers a complete range of automation products. Dedication to quality, reliability and ongoing investment in R&D, has resulted in Delta becoming renowned as an innovative leader in the industrial automation field. With 54 worldwide research facilities located in Taiwan, China, Thailand, Japan, USA and Europe, Delta employ 7500 R&D engineers and hold over 4900 registered patents.

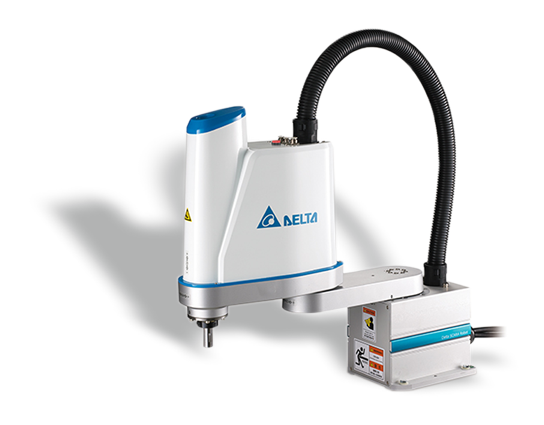

SCARA ROBOT

Fast, Accurate, Repeatable

Delta's range of Scara robots are the ideal solution to address the increased demands for agile production processess, improved productivity, frequency & quick format changeover, small volume production batches, shortages in labour and health risks associated with repeative tasks. The Delta Scara robots offer excellent speed, linearity and repeatibility, to rapidily and precisely perform operational tasks such as insertion, assembly, screwing, loading & unloading, pick & place, stacking and packing. When matched with the Delta range of automation, machine vision and other peripheral devices, the Delta Scara solution offers a highly integrated workstation.

  • High Repeatability
  • High Precision & Accuracy
  • Fast Cycle Times
  • Smoother Motion

Technical
Downloads
Linked Products
Number Of Axes3 - 5
Arm Length (X + Y)400mm - 700mm
Rated Payload1kg - 2kg
Maximum Payload3kg - 6kg
Maximum SpeedUp To 5000mm/sec, 2000o/sec
Standard Cycle Time0.39 - 0.72sec
Repeatability±0.01mm, 0.01o
Rated Push Force100 - 150N
Maximum Push Force250N - 350N
CatalogueDelta Scara Robot BrochurePDF 3.5MB
Delta Robot Overview FlierPDF 5.5MB
ManualMain User ManualPDF 5.6MB
DRASimuCAD ManualPDF 8.3MB
Standard Teach Pendant ManualPDF 2.7MB
DCS Controller ManualPDF 3.2MB
Language User ManualPDF 1.8MB
DRA Studio ManualPDF 19.2MB
DTS-2 Teach Pendant ManualPDF 8.7MB
CertificatesCE Certificate DRS40L/60LPDF 162KB
CE Certificate DRS60HPDF 148KB
UL Certificate DRS40L/60LPDF 766KB
