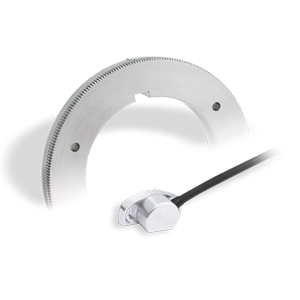

High Speed Incremental Gear Sensor

High speed gear and tooth sensor, for speed and position feedback,. Compact design with IP68 protection rating. Constructed from a robust corrosive resistant 6082 aluminium alloy body. Suitable for tooth module 0.3, or 0.5, and 1, 2, 3mm tooth profiles. Simple and precise alignment.

  • Compact Sensor Size
  • IP68 Protection Rating
  • Magnetic Sensing
  • High Resolution
  • High Counting Frequency

Technical
Downloads
Linked Products
Sensing MethodMagnetic
Protection RatingIP68
Interpolation Factor1 to 100
Sensor Accuracy±0.05o to ±0.1o
Repeat Accuracy1% Of Period Length
Max Counting Frequency200Hz
Output CircuitLine Driver
Push-Pull
1Vpp Sin/Cos
Supply Voltage5VDC
Electrical ConnectionCable
Cable with M12 Connector
Operating Temperature-25oC - +85oC
Maximum Enclosure RatingIP68
OptionsCable Length
Cable with M12 Connector
Reference Signal
