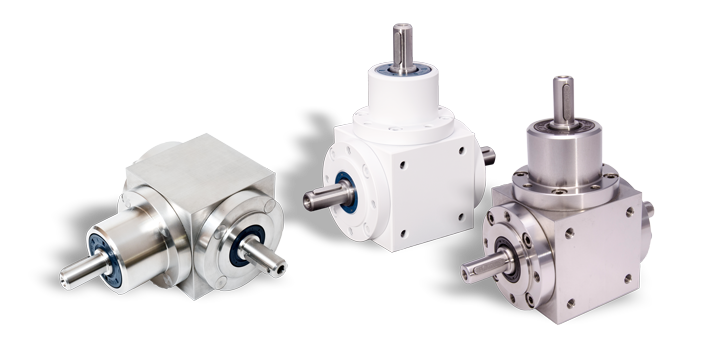

Spiral bevel gearboxes

compact design, high torque, wide range of ratios, low backlash, low noise, long lifetime

ATEK has been producing gearboxes for more than 30 years, with its core focus on right-angle power transmission. The company is driven on solving drive engineering problems – in a technically competent, economical, reliable and fast manner! Developed and assembled in the Hamburg region and distributed throughout the world, the Atek range of products have gained a large market share, which has been steadily growing over the years. The modularly structured product range primarily comprises of bevel, worm and servo gearboxes. The angular gearboxes stand out thanks to their compact design, extensive performance and wide range of ratios. Due to Atek’s production capabilities and high stock holding, products can often be despatched within a few hours.

spiral bevel

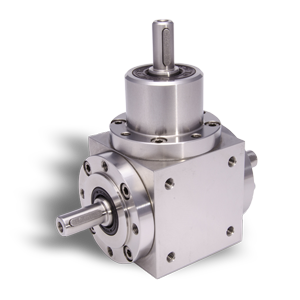

Precision Spiral Bevel Gearboxes

Atek's spiral bevel gearboxes offer a robust, powerful and compact design, for right angle power transmission. These high performance gearboxes are ideal for demanding applications due to their high strength, robust construction, and hardened precision spiral bevel gears. Suitable for high axial and radial loads, this range can also be offered with reduced backlash and multiple shaft configurations.

  • Robust, High Strength Design
  • Long Lifetime
  • Wide Selection Of Shaft Configurations
  • Special Surface Treatments

Technical
Downloads
Linked Products
Gearbox Rated Torque2Nm - 5,400Nm
Gearbox Rated PowerUp To 268kW
Gearbox Ratio1:1 - 6:1
Gearbox Size35 - 350
Body DesignSquare Bodied
IP RatingIP54
Body MaterialAluminium, Cast Iron, Stainless Steel

Options

Output Shaft Design
Shaft Seal Type
Reduced Backlash
IP Rating Upgrade to IP56
Surface Treatment
Paint Finish
CatalogueMiniature Spiral Bevel Gearbox CataloguePDF 3.0MB
Spiral Bevel Gearbox CataloguePDF 8.3MB
Spiral Bevel Gearbox With Additional Shafts DatasheetPDF 1.9MB
Hygiene Design Spiral Bevel CataloguePDF 3.8MB
Hygiene Design Spiral Bevel FlierPDF 3.4MB
Servo Driven Spiral Bevel CataloguePDF 7.0MB
Atek Main CataloguePDF 42MB
Atek Company OverviewPDF 4.4MB
General Technical InformationPDF 6.5MB
Atek Product Overview FlierPDF 7.0KB
DatasheetsService & MaintenancePDF 2.8MB
Assembly InstructionsPDF 5.6MB
DimensionsCAD Drawingshttps://www.atek.de/en/getriebe-konfigurator/
CertificatesEC Declaration of IncorporationPDF 1.7MB
