water treatment geared motor

customised model for use on sewage treatment plants, 50W, IP65, self-cooled, 230V or 115VAC, long life, ex-stock

Since its establishment in 1979, GGM has been designing and manufacturing AC and DC small geared motors. Based on a determination to manufacture the world's best geared motors, GGM has grown steadily into a strong enterprise that has an important presence on the global stage. The company has been recognized for its success in supplying geared motors with low noise, high efficiency, high strength, long life and price competitiveness, both domestically and globally. This has been due to its continuous technical developments and sound investments. Represented in 50 countries around the world, GGM is renowned for developing and supplying high quality products that meet the needs of the market. Through their affiliation with Korean research institutes, ongoing development of new products and technologies, this has ensured accumulated expertise in the production of small geared motors, and using the state-of-art production equipment.

AC geared motor

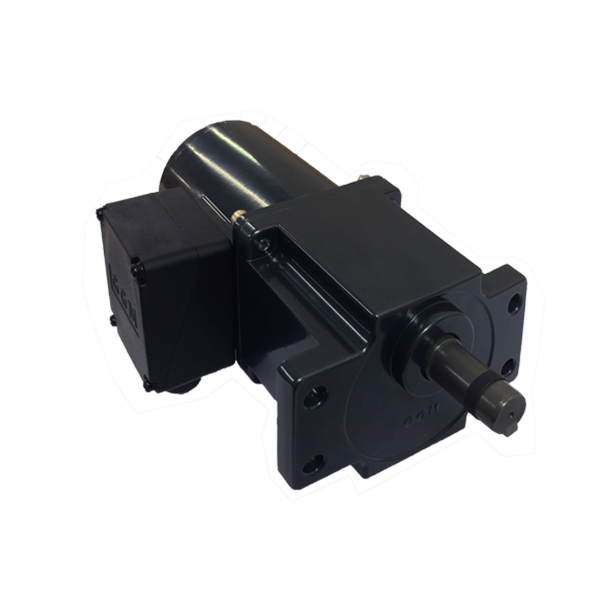

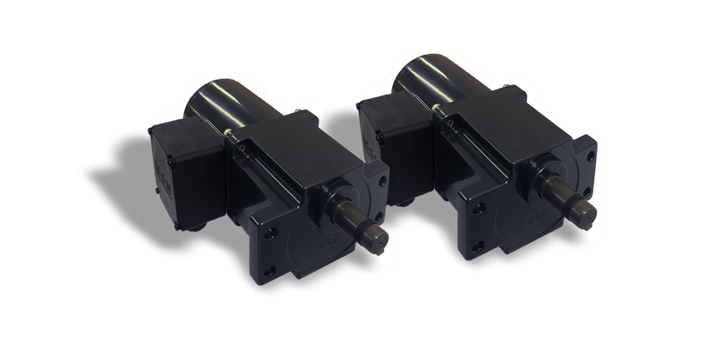

Sewage Treatment Plant Geared Motor

Manufactured by GGM, this customised AC geared motor has been specifically designed and development for use on sewage treatment plants. Held in stock and delivered within 24 hours, this model is rated to IP65, so ideally suited for use in harsh environments. The motor is a standard AC induction motor, with a rated output power of 50W and is suitable for connection to either 230VAC or 115VAC. Offering long life and maintenance free operation, this geared motor does not require servicing during its normal lifetime. The inline helical spur gearbox is provided with grease lubricated bearing and gears. Mechanically interchangeable with other brands.

  • Totally Enclosed IP65 Enclosure
  • Maintenance Free
  • High Efficiency
  • Continuously Rated
  • Long Liftetime

Technical
Downloads
Linked Products
Motor Rated Power50W
Gearbox Ratio200:1
Rated Speed6.5RPM
Rated Output Torque30Nm
Motor Voltage230VAC or 115VAC
Rated Frequency50 - 60Hz
Enclosure RatingIP65
Motor Frame Size90mm2
Electrical ConnectionTerminal Box
Thermal ProtectionYes
Fixing BoltsStainless Steel
DatasheetSewage Treatment Geared MotorPDF 1.0MB
.
Standard CatalogueGapp Compact AC Geared Motors - Stock RangePDF 2.7MB
.
GGM Compact Geared Motors Main CataloguePDF 105MB
.
CertificatesCE LVD CertificatePDF 1.6MB
.
UL CertificatePDF 112KB
.
RoHs CertificatePDF 117KB
.
