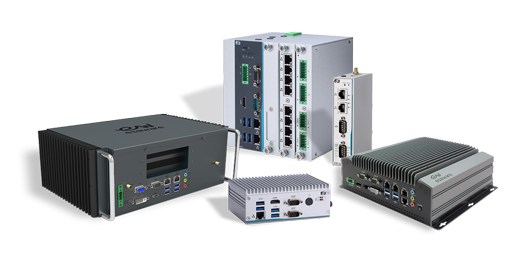

box ipcs

Rugged design, fanless, slimline, high performance, Wide temperature range, din-rail mounting, shock resistant

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

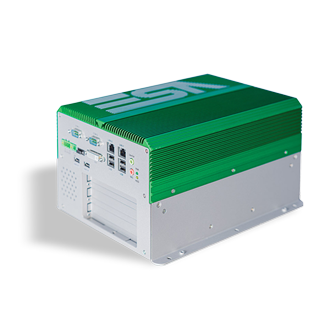

XB300

Box IPC

The XB300 Box IPC is a highly configurable industrial PC for demanding automation applications. Boasting low power consumption and high performance, the XB300 is offered with a variety of processors including iCore i3, i5, Core2Duo, Celeron Dual Core, and Celeron Quad Core. Due to its rugged housing, heat sink design, the XB300 offers highly efficient heat dissipation.

  • Highly Configurable
  • Robust Structure
  • i3, i5, Core2Duo and Celeron Processors
  • Low Power Consumption, High Performance

Technical
Downloads
Linked Products
CPUIntel iCore i3-3120ME 2.4GHz
Intel iCore i5-3610ME 2.7GHz
Intel Celeron B810 2.7GHz
Intel Core2Duo P8400 2.26GHz
Intel Celeron Dual Core T3100 1.9GHz
Interl Celeron Quad Core N2930 1.83GHz
ChipsetQM77
QM45 + ICH9M
SoC
RAMUp To 16GB DDR3
Up To 8GB DDR3
Up To 8GB DDR3L
Interface2x RS232
2x RS485
4x USB ver 2.0
6x USB ver 3.0
3 Slots For PCI and PCIe
1x DVI-I
1x VGA
Mic-In / Line In / Line Out
2x Ethernet 10/100/1000MBit, 1GBit
DrivesMin 500GB 2.5" SATA
SSD 32GB
Operating SystemWIN7
WES2009
WINXP Pro
WIN 8.1
WIN 10 IoT Enterprise LTSB 2016
Operating Temperature0 to +50oC
Power Supply11 to 32VDC
Protection RatingIP20
CatalogueESA XB300 DatasheetPDF 307KB
ESA Product Overview BrochurePDF 9.9MB
ManualESA XB300 Installation GuidePDF 356KB
ESA AC Power Supply GuidePDF 179KB
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/
CertificationESA XB300 EC Declaration Of ConformityPDF 265KB
