panel pcs

wide range of sizes, processors & options, resistive or capacitive multi-touch, plastic, aluminium or stainless steel, wide temperature range

ESA have been innovating industrial automation products for over 40 years, with the goal of offering the best technological automation solutions. The company invests heavily in research and development in order to come up with innovative products that will make industrial processes more sustainable, intuitive, fast and safe. The ESA experts are constantly working on the concept of user friendly and dynamic technologies that are able to adapt to their users. Founded in 1975, ESA has always focussed on developing products that are not only long-lasting, but also sustainable. They use safe, resistant and ecological materials, making sure to obtain the lowest environmental impact throughout the entire life cycle of the product and at the same time, maximum reliability. Key market sectors include Food & Beverage, Packaging, Material Manufacturing Machines, Chemical and Pharmaceutical, Energy, Automotive and Marine. Their products include HMIs, SoftPLCs, IPCs, I/O, Webpanels, Industrial Monitors, Industrial Routers, Energy Management, Drives & Motors and Software Solutions.

XS7

Industrial Panel PC

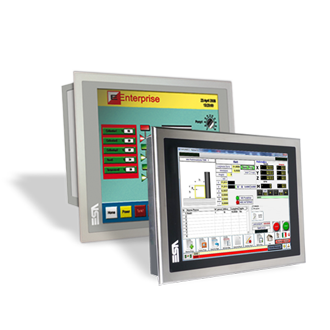

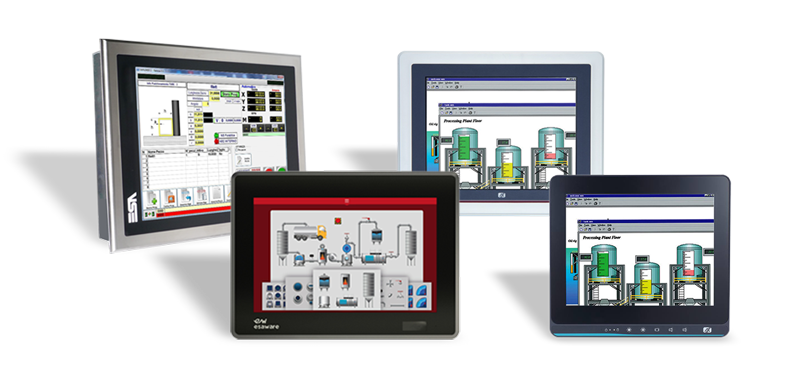

The XS7 family of Industrial Panel PCs offers a scaleable solution based on Intel i3, i5, i7, Intel Atom Core, and Intel Celeron Quad Core processors. Screen sizes range from 8.4" to 19", housed in either aluminium or stainless steel. Other features includes true-flat design, removable HDD/SDD and RAID functionality.

  • Intel Atom, Celeron Quad Core, Intel i3, i5 or i7
  • Aluminium or Stainless Steel Housing
  • 8.4" to 19" Resistive Touch Screen
  • High Brightness / 16.7M Colours

Technical
Downloads
Linked Products
Display Size8.4"
12.1"
15"
17"
19"
Display TypeTFT
Display Colours16.7M
Display BacklightLED
Display Resolution800 x 600 (8.4" & 12.1")
1024 x 768 (15")
1280 x 1024 (17" & 19")
Touch TechnologyAnalogue Resistive
Housing MaterialAluminium
Stainless Steel
ProcessorIntel ATOM Dual Core
Intel Celeron Quad Core
Intel Core i3
Intel Core i5
Intel Core i7
Operating SystemsWIN7
WES7
WIN8.1
WIN XP Pro Embedded
WES2009
WIN10 IoT Enterprise LTSB 2016
RAMUp To 32GB
Serial Ports2x RS232, 1x RS232/422/485
Ethernet Ports2x 1Gb
USB Ports1x USB2.0 Front IP66
Up To 3x USB 2.0 / USB 3.0
DrivesHDD min 500Gb
SSD min 32GB
mSATA min 32GB
CFast min 4GB
Expansion Slots1x PCI / 2x PCI / 1x PCIe / 2x mPCIe
Card Slot1xCFast
Power Supply18 - 30VDC
Protection Rating ButtonIP66
Operating Temperature0 to +50oC
CatalogueESA XS7 DatasheetPDF 125KB
ESA XS7 Inox Stainless Steel DatasheetPDF 650KB
ESA Product Overview BrochurePDF 9.9MB
ManualESA XS7 Installation GuidePDF 4.2MB
ESA XS7 Front Adhesive Protection SheetPDF 580KB
ESA AC Power Supply GuidePDF 179KB
ESA ATEX GuidePDF 394KB
SoftwareESA Software & Communication ToolsVarioushttps://www.esa-automation.com/en/category-downloads/?name=EW200%26nbsp%3BPanel%26nbsp%3BIPC&refid=1516
DimensionsESA 2D and 3D CAD DrawingsVarioushttps://www.esa-automation.com/en/category-downloads/?name=EW200%26nbsp%3BPanel%26nbsp%3BIPC&refid=1516
CertificationESA XS7 EC Declaration Of ConformityPDF 334KB
ESA XS7 ATEX DeclarationPDF 105KB
